wedge wire screen for mining & mineral processing

Product Code: 3148
Category:Lauter Tun Screen
Material:wedge wire screen for mining & mineral processing
Properties:filter strainer
Application:make animal feed ,filteration, dehydration

Email to Us Start Order


Email:sales@ubooem.com

Description of wedge wire screen for mining & mineral processing


wedge wire screen for mining & mineral processing is a metal mesh structural elements for screening and filtering. It is widely used in many industries, filtration, dehydration, removing mud and other operations. It has high strength, rigidity and load capacity, can be made into various shapes of rigid screening.
Our company has the most sophisticated processing equipment and the most advanced detection system. Precision is up to ± 0.05 mm, hole accuracy is up to ± 0.05 mm ,sieve slit is up to 0.1 mm minimum.

wedge wire screen for mining & mineral processing

Features of wedge wire screen for mining & mineral processing

High strength
Excellent performance
Fine finish
Typical static panels, including architectural panels, will have a surround frame welded around the screen
Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen

Application of wedge wire screen for mining & mineral processing

Used in water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.
wedge wire screen for mining & mineral processing






Specification of the wedge wire screen for mining & mineral processing


wedge wire screen for mining & mineral processing

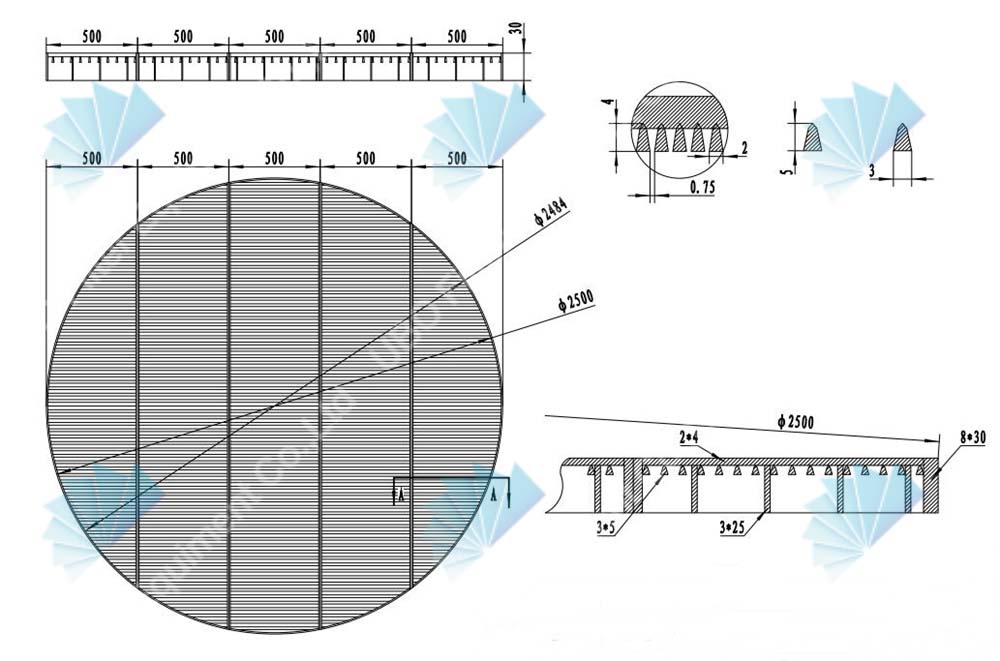

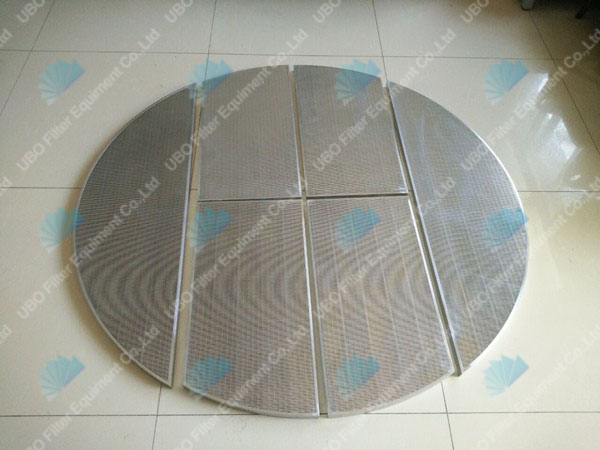

Wedge wire circle screen plate

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

Production And Sales of wedge wire screen for mining & mineral processing


wedge wire screen for mining & mineral processing
