Category: | Wedge Wire Screen Cylinders |
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire pipe |
Application: | water treatment, mining, food industry, chemical industry, papermaking industry, decoration. |

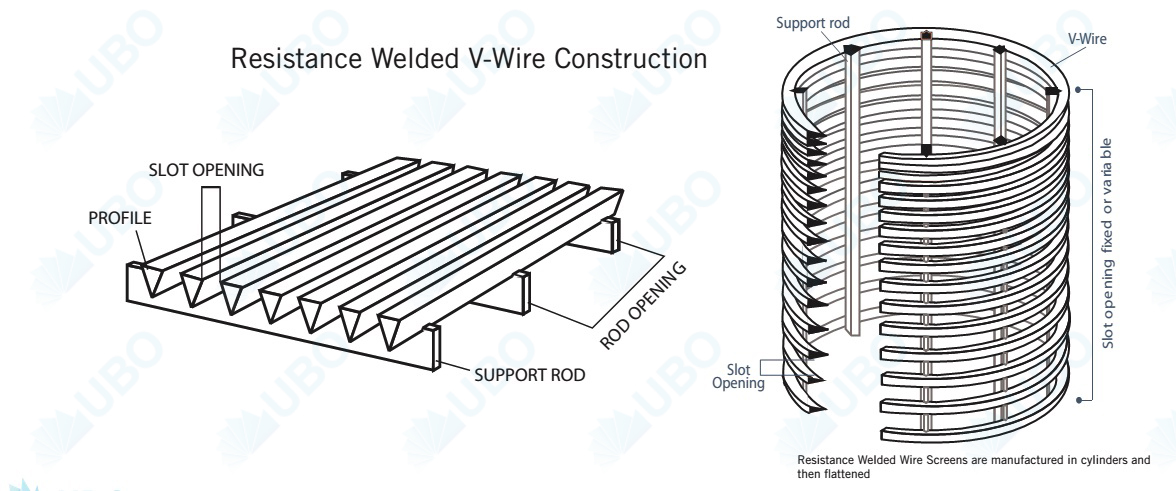

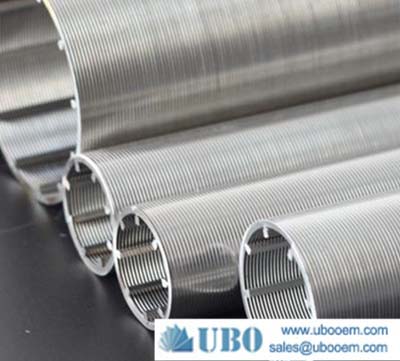

The V wire screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering
Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

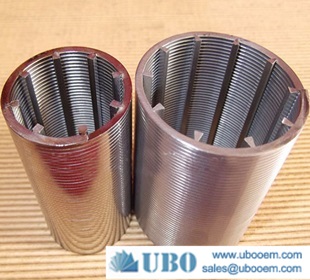

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

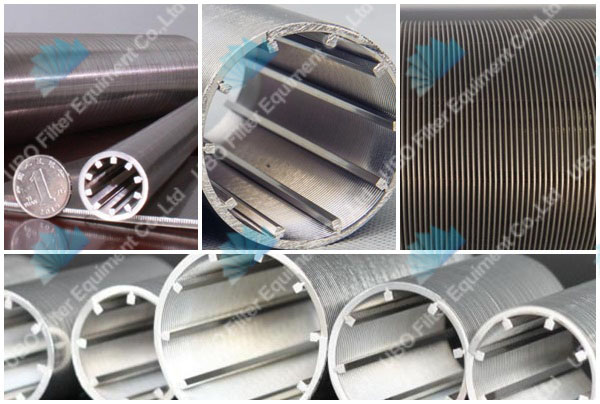

1. Non-clogging construction: The V-shape section plane of wedge wire screens (Wedge Wire type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. Large Filtering Area: The consecutive slot of wedge wire screens (Wedge Wire type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,
which can increase the water yield and prolong service time of the well.
3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Wedge Wire types screens) more robust and longer life.
4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Wedge Wire type screens) have more excellent pressure-resistant performance.
5.Specifications and end connections of wedge wire screens(Wedge Wire screens) can me fabricated according to customers’ requirements.
Material: stainless steel 304, 304L, 316, 316L, 321, etc.
Tube diameter: 25 mm - 1500 mm.
Tube length: 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized.
Surface profile type: triangle wire.
Support profile: triangle wire, flat bar or wedge wire.
SLOT
(INCH) |
LENGTH
(m) |
WIDTH
(m) |
COLLAPSE
STERENG
(PSI) |
TENSILE
WEIGHT
(TON) |
WRAP
(thick*deep)
(mm) |
RODS
(mm) |
0.04 |
1-6 |
0.5-2 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
0.04 |
1-6 |
0.5-2 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
0.04 |
1-6 |
0.5-2 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
0.01 |
1-6 |
0.5-2 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.02 |
1-6 |
0.5-2 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.04 |
1-6 |
0.5-2 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.01 |
1-6 |
0.5-2 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
0.02 |
1-6 |
0.5-2 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
0.04 |
1-6 |
0.5-2 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
