| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen pipe |
| Application: | water-treatment,beer brewing,mineral processing, coal-cleaning plant,refining & petrochemical |

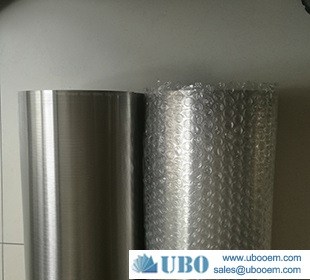

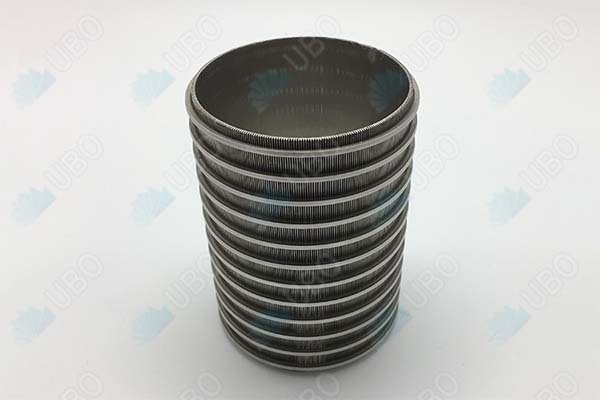

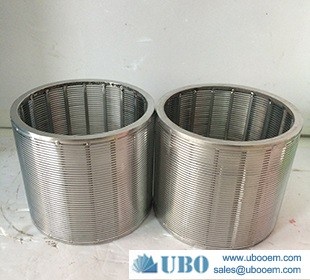

Stainless steel Wedge Wire water filter screen tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

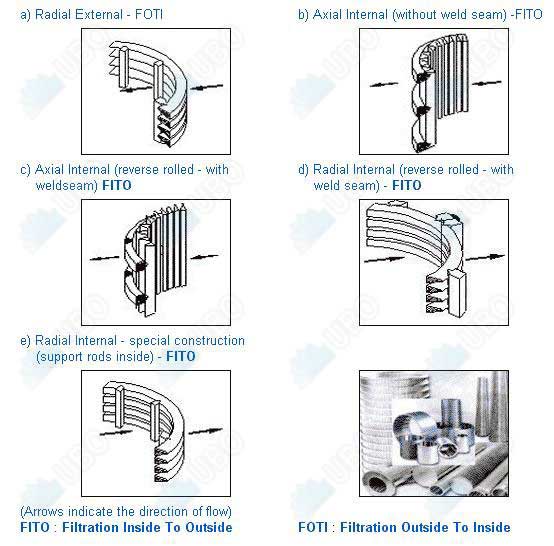

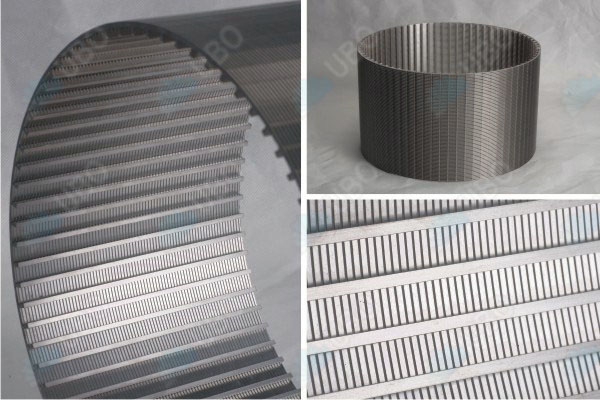

Wedge wire water filter screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Petroleum industry: Oil filtration.
Water treatment industry: Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry: End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.
1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2) Uninterrupted flow.
3) A uniform and efficient well development due to the continuous slot opening.
4) Good strength, no further support structure needed.
|
wedge wire screen tube for water well |
|||||||
|
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
|
OD Range |
19mm-2000mm |
||||||
|
ID Range |
13mm-1981mm |
||||||
|
Length Range |
Up to 6000 mm |
||||||
|
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
|
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
3*5 |
|
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
2x3
2x4
3x5
3x6
3x10
4x7 |
2x4
3x5
3x6
3x10
4x7
5x6 |
3x5
3x6
3x10
4x7
5x6
5x8 |
|
End Finishing |
Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
||||||
|
Note |
Customized According To Requirement |
||||||
Package: in wood case
Delivery: 10-20 days
