Wedge Wire wrap wire screen filter nozzle

Product Code: 3358
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire wrap wire screen filter nozzle


UBO supply high quality various specifications Wedge Wire wrap Wedge Wire screen filter nozzle, Sand Filter Nozzle, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.
Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.

TheWedge Wire wrap Wedge Wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

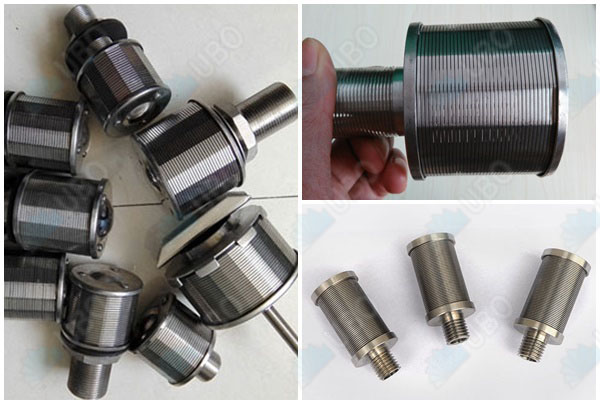

Wedge Wire wrap Wedge Wire screen filter nozzle

Characteristics of Wedge Wire wrap Wedge Wire screen filter nozzle

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Advantages of Wedge Wire wrap Wedge Wire screen filter nozzle

Excellent roundness
High strength;
Good resistance to abrasion and corrosion;
High mechanical load capacity
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Uniform slot size.

Specification of the Wedge Wire wrap wire screen filter nozzle


stainless steel filter screen nozzles

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of Wedge Wire wrap wire screen filter nozzle


Wedge Wire wrap Wedge Wire screen filter nozzle
