| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | filter nozzle |
| Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |

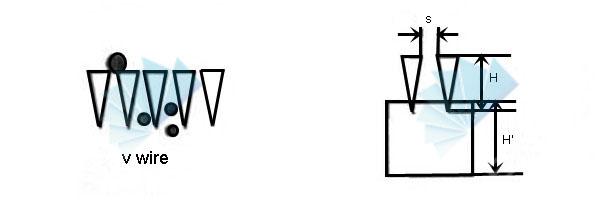

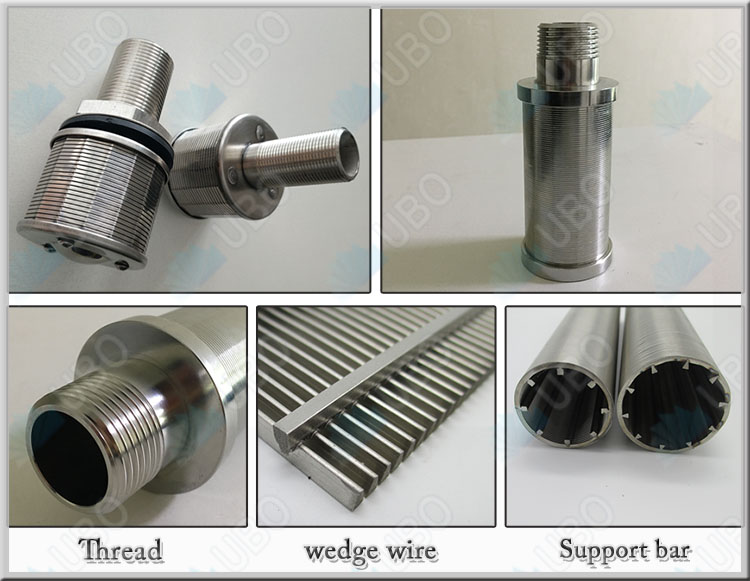

Wedge Wire Screen filter nozzle strainer consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded,so it has sturdy constriction and good mechanical property.
The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area,and it can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,so Continuous Slot Wire Wedge Wire Screen can filter sand better.
-- Great mechanical strength
-- Highly resistant to abrasivity and vibration.
-- It can hold more pressure and temperature compared to the perforated sheet screen.
-- Longer screen life.
-- Larger useful area than that of the standard perforated sheet screen.
-- The wedge wire screen can be used in any of INOXPA filters.
-- The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick --disassembling for cleaning.
-- Clean the wedge wire screen with a reversed flow (back flushing).
Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening,sugar mill, conversion of sea water into fresh water, the filter of food chemistry.
 |
|||||||
|
Type |
Slot (mm) |
Dimension |
Flow Rating (M3/H) |
||||
|
D(mm) |
H(MM) |
L(MM) |
Thread |
Fittings |
|||
|
UBO-0.5 |
0.25 |
45 |
45 |
90/request |

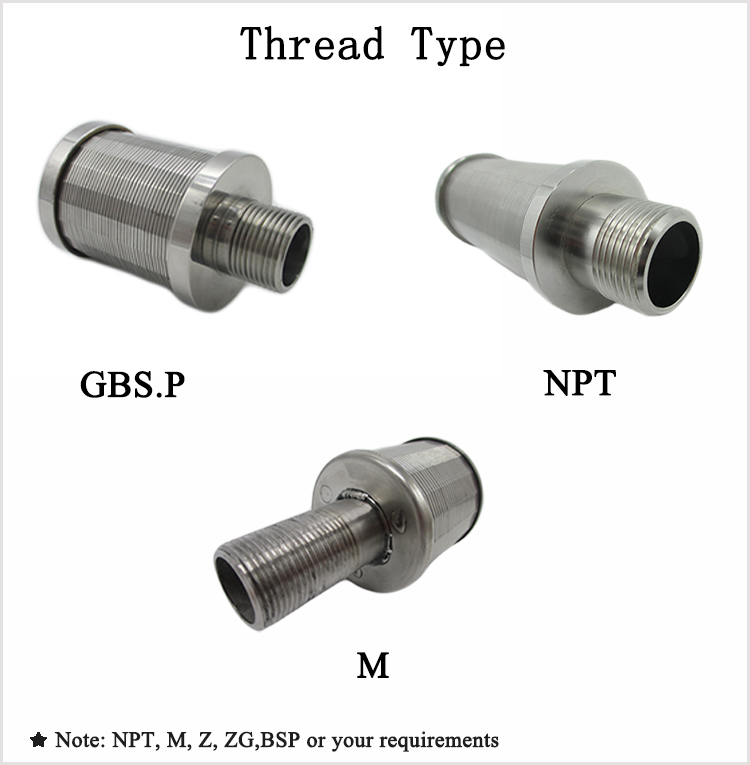

M,NPT, G, PT(BSPT),Z,BSP, request |

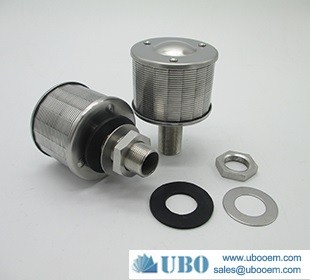

SS Gasket, Rubber gasket, Nut, request |
0.5 |
|
UBO-1.0 |
0.25 |
53 |
45 |
90/request |
1.0 |
||
|
UBO-1.5 |
0.25 |
57 |
45 |
90/request |
1.5 |
||
|
UBO-2.0 |
0.25 |
57 |
55 |
100/request |
2.0 |
||
|
UBO-2.5 |
0.25 |
70 |
55 |
100/request |
2.5 |
||
|
UBO-3.0 |
0.25 |
70 |
70 |
120/request |
3.0 |
||
|
|
* All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
||||||
Package: in wood case
Delivery: 10-20 days
