| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | filter nozzle |
| Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |

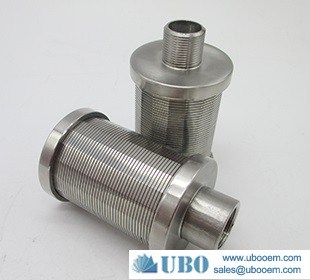

Wedge Wire Single or Double Filter Nozzle Screen is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.
Type of wedge wire nozzle filter
According to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements.
-- Long handle wedge wire nozzle
-- Single wedge wire nozzle.

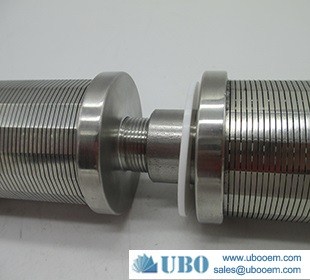

-- Double wedge wire nozzle.
-- Non-clogging.
-- High open area.
-- High filtering performance.
-- Corrosion and rust resistance.
-- High temperature resistance.
-- Economical.
-- Easy to install and replacement.
Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.

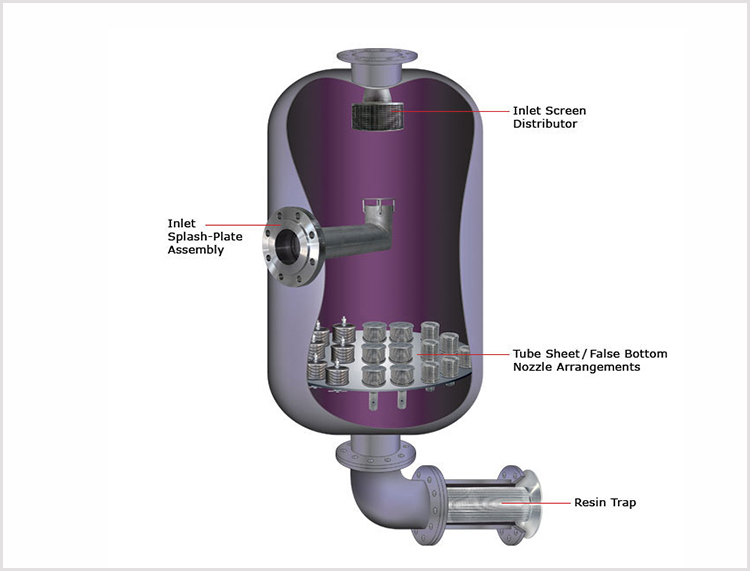

Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.
 |
|||||||
| Type |
Slot (mm) |
Dimension |
Flow Rating (M3/H) |
||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
| UBO-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request |
SS Gasket, Rubber gasket, Nut, request |
0.5 |
| UBO-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| UBO-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| UBO-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| UBO-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| UBO-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note |
* All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
||||||
Package: in wood case
Delivery: 10-20 days
