| Category: | Basket Filters |
| Material: | Stainless steel 316 |
| Properties: | basket filter |
| Application: | Filtration |

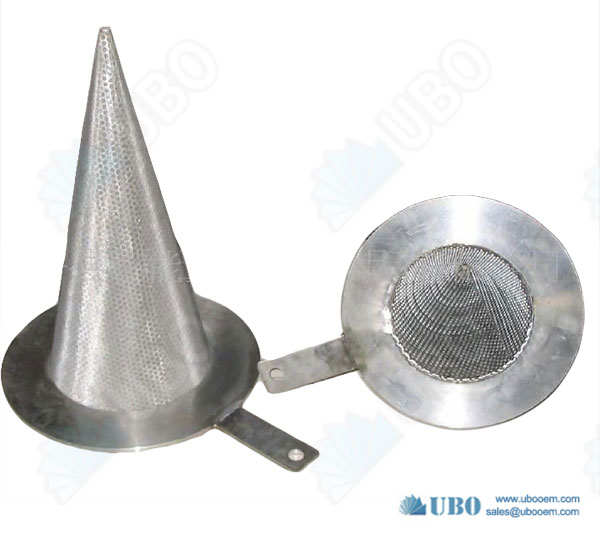

Temporary basket strainers are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment against damage causing contamination present during start-up and commissioning. Perforated basket temporary strainers are for temporary use and should be removed and thrown away after the initial cleaning of the system. Since these strainers are temporary, they need to be installed in a section of pipe such as a removable spool piece.
Standard Materials: Carbon Steel, 304 Strainless Steel & 316 Stainless Steel.
Temporary basket strainer comes in the following kinds to meet user requirement.

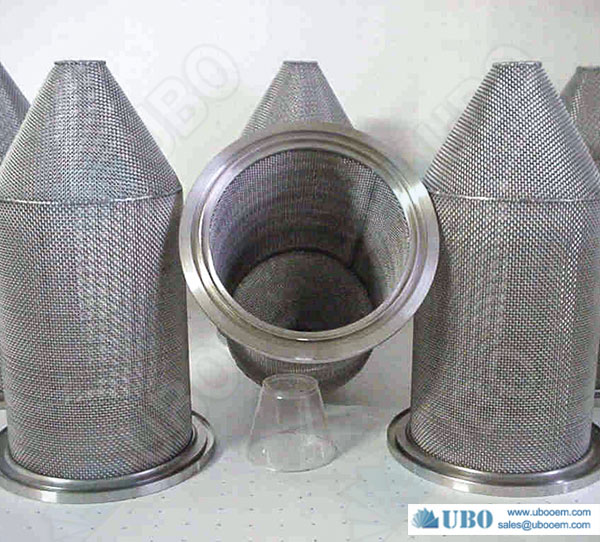

stainless steel perforated basket temporary strainers
carbon steel perforated basket temporary strainers
galvanized temporary basket strainer
1) Backwash and Reusable
2) Uniform pore size distribution
3) Good air permeability
4) High filter efficiency
5) Heat Resistance
6) High corrosion resistance if 316L raw material
Chemical processing
Petroleum
Power generation
Marine
Water
Oil & Gas
Offshore
Iron & Steel
Automotive
HVAC
Pulp & Paper
Food & Beverage
Pharmaceutical
YUBO supplies kinds of stainless steel filter elements, filter element, filter disc, sintered filter, filter strainer, polymeric filter, basket filter, wire mesh filter, pleated filter,etc.
|
Nominal Pipe
Size |
Inches
|
Inches
|
|||||||
|
L
|
D
|
F
|
B
|
F MIN
|
Area in Sq. In.
|
|
D1 |
|
|
|
150#
|
300# |
600# |
|||||||
|
1 1/2" |
4 |
1 1/2 |
1/8 |
5/8 |
.125 |
13.7 |
3 1/8 |
3 1/2 |
3 1/2 |
|
2" |
4 1/2 |
2 |
1/8 |
7/8 |
.125 |
21.1 |
3 7/8 |
4 1/8 |
4 1/8 |
|
2 1/2" |
5 1/2 |
2 1/2 |
1/8 |
7/8 |
.125 |
30.3 |
4 5/8 |
4 7/8 |
4 7/8 |
|
3" |
6 1/2 |
3 |
1/8 |
1 |
.125 |
42.1 |
5 1/8 |
5 5/8 |
5 5/8 |
|
4" |
8 1/8 |
4 |
1/8 |
1 1/2 |
.125 |
76.0 |
6 5/8 |
6 7/8 |
7 1/8 |
|
5" |
10 1/2 |
5 |
1/8 |
2 |
.125 |
123.0 |
7 1/2 |
8 1/4 |
9 1/4 |
|
6" |
13 |
6 |
1/8 |
2 1/2 |
.125 |
180.0 |
8 1/2 |
9 5/8 |
10 1/4 |
|
8" |
17 |
7 7/8 |
1/8 |
3 |
.125 |
300.4 |
10 3/4 |
11 7/8 |
12 3/8 |
|
10" |
21 |
9 3/8 |
1/8 |
3 1/2 |
.125 |
438.5 |
13 1/8 |
14 |
15 3/8 |
|
12" |
25 |
11 1/2 |
3/16 |
4 |
.188 |
621.3 |
15 7/8 |
16 3/8 |
17 5/8 |
|
14" |
26 |
13 1/8 |
3/16 |
4 |
.188 |
722.6 |
17 1/2 |
18 7/8 |
19 1/8 |
|
16" |
29 1/2 |
15 1/8 |
3/16 |
4 |
.188 |
914.4 |
20 |
21 |
22 |
|
18" |
33 |
17 1/8 |
3/16 |
4 |
.188 |
1129.2 |
21 3/8 |
23 1/4 |
23 7/8 |
|
20" |
37 |
19 1/8 |
3/16 |
4 |
.188 |
1384.4 |
23 5/8 |
25 1/2 |
26 5/8 |
|
24" |
44 |
22 |
3/16 |
4 |
.188 |
1846.8 |
28 |
30 1/4 |
30 7/8 |
Standard Mesh Liners/Covers:10, 20, 30, 40, 50, 60, 80, & 100 Mesh.
Packaging Details: Cone Wire Mesh Strainers are packed with cartons and outside with wooden pallets or wooden cases.
