sintered Poremet filter element

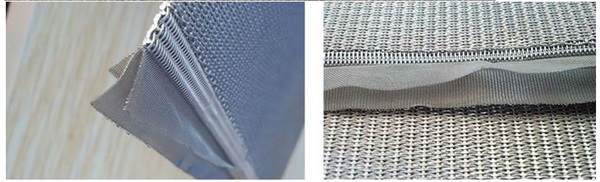

It is a porous metal panel which consists of multiple meshes and is sintered (diffusion-bonded) into one panel. It usually consists of protection mesh, filter mesh and support mesh and its combination is depending on needs or requirements.

Applications for sintered Poremet filter element:

Gases (Natural gas, Hydrogen, Nitrogen etc.)
Oils (Crude oil, Fuel oil, Hydraulic oil, Cooking oil etc.), Solvents, Steam, Air, Liquid etc.

Besides any custom designs, there are several main standard types of sintered wire mesh laminates:

5-Layer Sintered Wire Mesh
This is the most common type of sintered wire mesh laminate. It is made with one filter layer sintered to several standard protective and support layers.
Sintered Wire Mesh with Perforated Metal
This type of sintered mesh laminate consists of several layers of wire mesh sintered to a perforated plate.
Sintered Square Woven Mesh
This type of sintered mesh laminate consists of several layers of square woven wire mesh sintered together.
Sintered Dutch Woven Mesh
This type of sintered mesh laminate consists of 2 to 3 layers of dutch woven wire mesh sintered together.

Characteristic for sintered Poremet filter element：

(1)Large dust holding capacity, high filtration precision, pressure raises slowly,a long cycle period.
(2) High porosity and excellent permeability, small pressure loss, high flow.
(3) Corrosion resistance, high temperature resistance, resistance to corrosion of acid, alkali, organic solvents and drug, at 480 °C environment for long-term use.
(4) Easy processing, forming, and welding.
(5) Be produced according to user requirements are particularly enhanced, thickened type, intensive network type and various other specifications.

Feature for sintered Poremet filter element:

*Stable pore shapes
*High permeability
*Low pressure drop
*High dirt-holding capacity (longer lifetime)
*High temperature resistance
*High differential pressure with stand capacity
*Strong corrosion resistant
*Back flushing
*Excellent mechanical strength
*No media migration
*Size customization
*Various specifications are available as request.

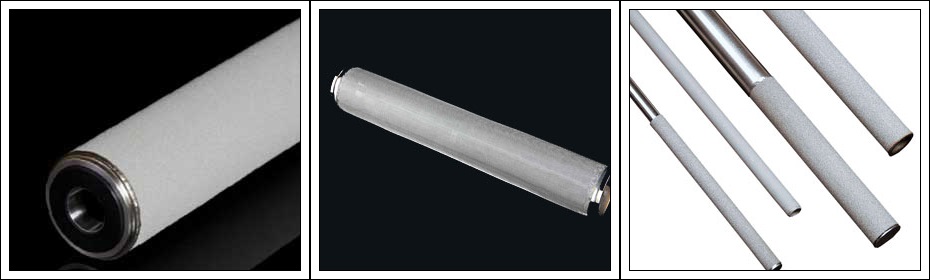

Ubo Filter Co.,Ltd could supply stainless steel filter elements,filter element, filter disc, sintered  filter,filter strainer,polymeric filter,basket filter, wire mesh filter ,pleated filter

Material: SUS 304, SUS 316, SUS316L
Dia. (mm): φ25, φ50, φ75
Length (mm) : 250, 500, 750, 1000
Other specification is available depending on needs or requirements
Standard sintered wire mesh panel, "Poremet''
“Poremet” is our standard products of sintered wire mesh panel which is well designed for multi purposes and usually consists of five (5) layers of meshes;
First layer: 100 mesh as protection,
Second layer: filter mesh which varies on requirement,
Third layer: 100 mesh again as protection,
Fourth layer: 12/64 mesh as support,
Fifth layer: 12/64 mesh again, but placed cross to the fourth layer.
The standard sizes of “Poremet” panels are,
500 mm x 1,000 mm,
1,000 mm x 1,000 mm,
1,200 mm x 1,200 mm
