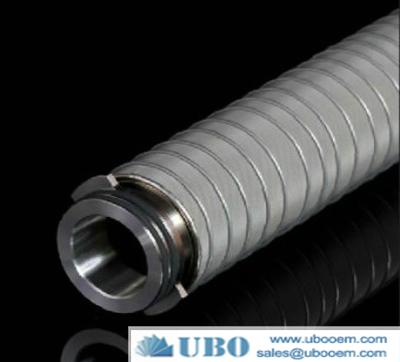

Sintered Stainless Steel Filter Cartridge

Sintered Stainless Steel Filter Cartridge

1.Introduction

The sintered stainless steel filter cartridge adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.

2.Technical Parameter

Length:250mm, OD-53mm

Filter Precision:1~100um

Working Pressure≤31.7Mpa

Working Temperature≤300oC

Medium Viscosity≤260Pa.S

Allow Pressure Drop≤10Mpa

Dirt Holding Capacity≥16.9~41Mgcm2

3.Features & Benefits

• Stable pore shapes
• High permeability
• Low pressure drop
• High dirt-holding capacity (longer lifetime)
• High temperature resistance
• High differential pressure with stand capacity
• Strong corrosion resistant
• Back flushing

4.Application

catalyst recovery in petrochemical & chemical polymer filtration

gas filter, oil filter , fuel & hydraulic oil filter, water treatment ,etc

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc. Welcome to contact us for more information and cooperation.0086-0311-83289301

Sintered Stainless Steel Filter Cartridge

Brand Name: SD

Function: Polymer Filtration

Structure: Cartridge

Material: SS

Application: High Polymer Filtration

Viscosity: Less than 260Pa,s

Working Temperature: Less than 300°c

Industry: Textile, Plastic ,etc

Packaging: Wooden Crate

Sintered Stainless Steel Filter Cartridge

Delivery Detail: after payment 25 days! production time schedule will be provided
