| Category: | Sintered Powder Filter |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | Sintered filter |
| Application: | mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu |

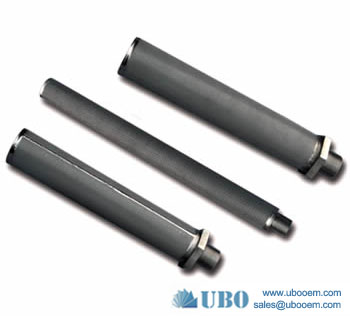

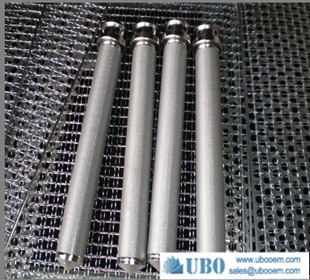

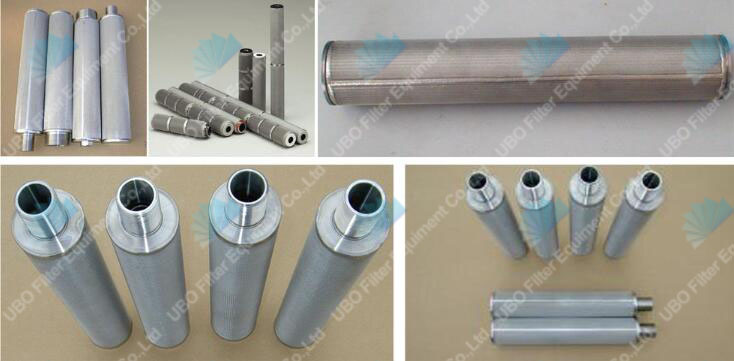

Ubo manufactures various kinds of sintered metal powder filters in forms of filter cylinder, filter cartridge, filter tube, filter candle, filter sheet, filter disc, sparger, diffusion aerator and so on. By cold isostatic pressing or co-axial pressing via powder metallurgy process.
Metal Sintered Powder Filter cap Fittings and connector can be bonded to the porous parts by welding (TIG welding), machining or directly welded during sintering process.
1. Gas and liquid filtration
2. Solid catalyst recovery
3. Filtration of slurry oil and other petrochemical products
4. Fluidization
5. Powder conveying
6. Aeration and other applications in various industrial fields
1. Good shape stability
2. High strength and good integrity
3. Controllable pore sizes and porosity
4. Good permeability
5. Good corrosion and thermal resistance
6. Easy to be made into complicated shapes
| Stainless Steel Cylinder Filter Element | |||||||
| Mesh/Inch | Wire Diameter(mm) | Aperture (mm) | Filtration Area % | Mesh/Inch | Wire Diameter(mm) |
Aperture (mm) |
Filtration Area% |
| 5 | 1.00 | 4.08 | 64 | 100 | 0.11 | 0.144 | 32 |
| 6 | 0.90 | 3.33 | 62 | 120 | 0.09 | 0.122 | 33 |
| 8 | 0.70 | 2.47 | 61 | 150 | 0.065 | 0.104 | 38 |
| 10 | 0.50 | 0.04 | 64 | 200 | 0.05 | 0.077 | 37 |
| 12 | 0.50 | 1.62 | 59 | 200 | 0.04 | 0.084 | 47 |
| 14 | 0.50 | 0.50 | 52 | 250 | 0.04 | 0.062 | 37 |
| 16 | 0.35 | 1.24 | 61 | 250 | 0.035 | 0.067 | 43 |
| 18 | 0.28 | 1.31 | 64 | 250 | 0.03 | 0.072 | 50 |
| 20 | 0.35 | 0.92 | 52 | 300 | 0.04 | 0.045 | 28 |
| 24 | 0.35 | 0.71 | 45 | 300 | 0.03 | 0.055 | 42 |
| 28 | 0.35 | 0.56 | 38 | 325 | 0.035 | 0.043 | 30 |
