Category: | Metal Sintered Filter Elements |
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Metal felt filter elements |
Application: | petroleum, chemical industry, electric power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage |

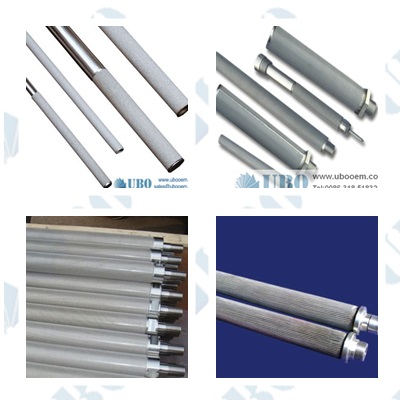

Medical and pharmaceutical Felt Filter Elements is made of sintered metal fiber felt according to different applications. Medical and pharmaceutical Felt Filter Elements has the features of good permeability, big capacity, high strength,no bracket required, heat resistance, corrosion resistance, easy to clean, high filter rating, etc.
The Felt Filter Elements' specifications can be customized according to your requirements. We can provide you free samples, cause I believe the quality of our products. And I believe that our products can bring you better returns
Catalyst Recovery In Petrochemical / Chemical Industries;Polymer Filtration;Cross Flow Filtration;Gas Filtration;Analytical Devices;Medical devices;Oil Filtration;Aerosol Application;Gas-Liquid Separation
*Stable pore shapes
*High permeability
*Low pressure drop
*High dirt-holding capacity (longer lifetime)
*High temperature resistance
*High differential pressure with stand capacity
*Strong corrosion resistant
*Back flushing
*Excellent mechanical strength
*No media migration
*Size customization
*Various specifications are available as request
*Considerable amount of dirt holding capacity
*The filtration area is precise to obtain desired quality and life.;
*Low pressure drop due to high porosity;
*Precise filtration rating.
Absolute Rating (µ) |
Bubble Point Pressure (Pa) |
Average Air Permeability (L/dm2/min) |
Thickness (mm) |
Weight (g/㎡) |
Porosity (%) |
DirtHolding Capacity (mg/cm2) |
3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
