| Category: | Sintered Metal Mesh Filter |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | sintered filter |
| Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |

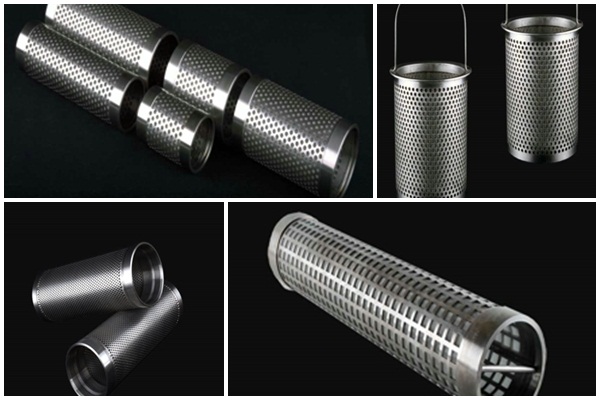

The Edible Oil Filters are made of sintered wire mesh laminates with perforated sheet. This kind of filter cartridge has good capacities such as the corrosion resistance,good air permeability,easy to back wash,high filter rating and etc.
The filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries
a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.
1.Filter Materials:SUS 316L,304
2.Filtering Rating:1-200 micron
3.Filter Media:Sintered Wire Mesh With Perforated Plate
4.Shapes:Cartridge Filter, Disc Filters,Pleated Filter Elements, Filter Panel and etc
5.Working Temperature:-200 —600°C
| Size | ||||||
| pipe size | inside diameter | outside diameter (class 150-1500) | ||||
| 500/300 | 300 | 600 | 900 | 1500 | ||
| 3/4 | 5/8 | 2-1/8 | 2-1/2 | 2-1/2 | 2-5/8 | 2-5/8 |
| 1 | 3/4 | 2-1/2 | 2-3/4 | 2-3/4 | 3 | 3 |
| 1-1/2 | 1-1/4 | 3-1/4 | 3-5/8 | 3-5/8 | 3-3/4 | 3-3/4 |
| 2 | 1-3/4 | 4 | 4-1/4 | 4-1/4 | 5-1/2 | 5-1/2 |
| 2-1/2 | 2-1/4 | 4-3/4 | 5 | 5 | 6-3/8 | 6-3/8 |
| 3 | 2-3/4 | 5-1/4 | 5-3/4 | 5-3/4 | 6-1/2 | 6-3/4 |
| 4 | 3-3/4 | 6-3/4 | 7 | 7-1/2 | 8 | 8-1/8 |
| 5 | 4-5/8 | 7-5/8 | 8-1/4 | 9-3/8 | 9-5/8 | 9-7/8 |
| 6 | 5-1/2 | 8-5/8 | 9-3/4 | 10-3/8 | 11-1/4 | 11 |
| 8 | 7-3/8 | 10-7/8 | 12 | 12-1/2 | 14 | 13-3/4 |
| 10 | 9-3/8 | 13-1/4 | 14-1/8 | 15-5/8 | 17 | 17 |
| 12 | 11 | 16 | 16-1/2 | 17-7/8 | 19-1/2 | 20-3/8 |
| 14 | 12-1/4 | 17-3/8 | 18-7/8 | 19 | 20-3/8 | 22-5/8 |
| 16 | 14 | 20-1/8 | 21 | 21-7/8 | 22-1/2 | 25-1/8 |
| 18 | 15-3/4 | 21-1/4 | 23 | 23-3/4 | 25 | 27-5/8 |
| 20 | 17-1/2 | 23-1/2 | 25-1/2 | 26-5/8 | 27-3/8 | 29-5/8 |
| 24 | 21-1/4 | 27-7/8 | 30-1/4 | 30-7/8 | 32-7/8 | 35-3/8 |
| 30 | 27-1/4 | 34-3/8 | 37-1/8 | 37-7/8 | 39-3/8 | - |
| 36 | 33 | 40-7/8 | 43-5/8 | 44-1/8 | 46-7/8 | - |
| Minimum Order Quantity: | 200 Piece/Pieces pcs |
|---|---|
| Port: | Qingdao,Tianjin,Shanghai |
| Packaging Details: | Plywood Case |
| Delivery Time: | 20Days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month Quarter |
