Category: | Header-Lateral |
Material: | metal |
Properties: | wedge wire screen |
Application: | for water treatment |
The wellpoint screen filter for water treatment for ion exchange post-processing procedures designed to minimize the loss of the ion exchange resin. UBO Ltd. can be designed to capture particles of any size media catcher. To capture enough flow area to the processes that run smoothly due to the continuous open slot. We provide various types of resin trap to meet almost any purpose. A variety of materials and connection flange and the shell can be produced. Authentic 304 and 316L material.
water treatment, resin traps, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.
High weld strength
Higher accuracy and consistency of wire gap
Lower surface roughness
Single piece cylinder construction (As opposed to welded patched cylinders)
Axially-seamless cylinder construction
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.

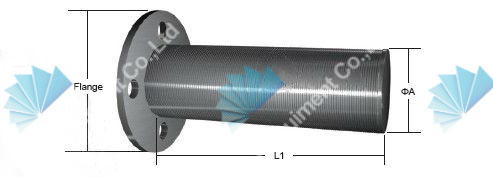

Type
|
Slots mm
|
ΦA
|
Flange DN
|
L1mm
|
AM1
|
0.05, 0.1, 0.2 0.3, 0.5, 1.0
|
45,57,76,89,108,
133, 159, 219
|
40,50,65,80,
100,125,150,
200
|
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286
|
