| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel |
| Properties: | wedge wire screen |
| Application: | for mining mineral processing |

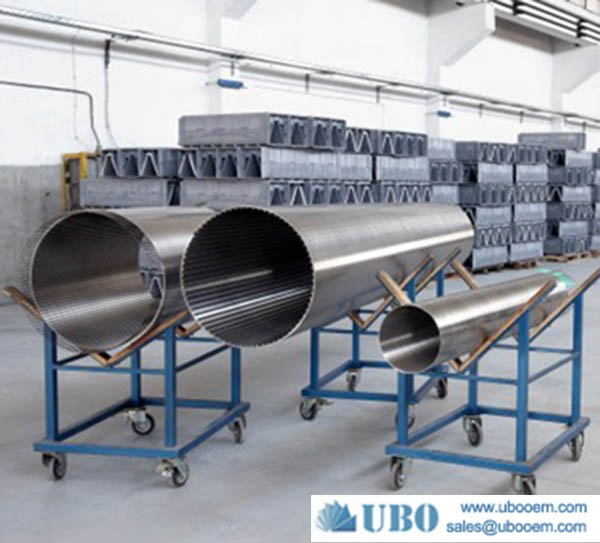

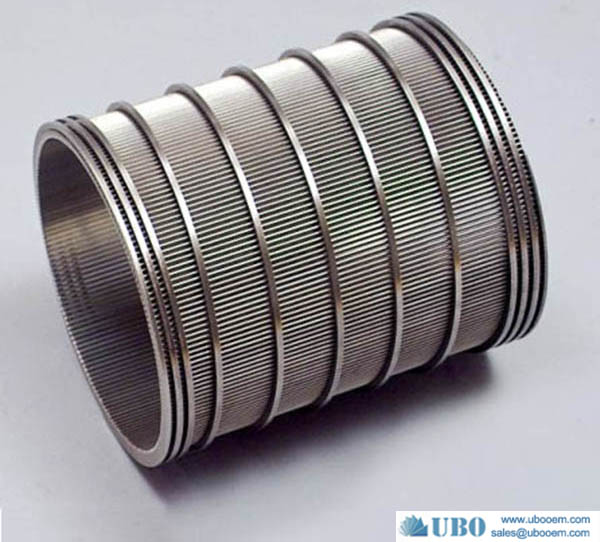

wedge wire screen for mining mineral processing, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. The stainless steel cylindrical wedge wire screensis composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
The v wire wedge wire screen pipe are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter and other filtration equipment.
-- A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
-- A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
-- A uniform and efficient well development due to the continuous slot opening.
-- Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

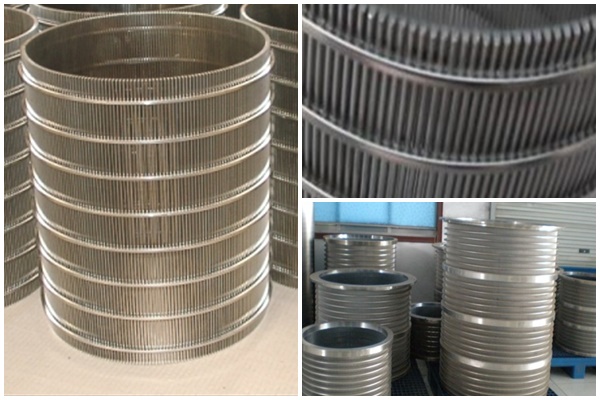

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Product details:
wedge wire screen for mining mineral processing
Materials SS 304, 316,316L, Stainless steel and carbon steel.
Slot size 0.05, 0.1, 0.25,0.50,0.75,1.00,1.50,2.00,3.00(mm)
minmum slot 20 mm
application application in water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.
Surface treatment polishing ,chroming
characteristics High filtering accuracy , High strengh and durability
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Diameter |
from 25mm to 1200mm. |
|
End connection |
Plain beveled ends, flanged or threaded couplings |
