Category: | Sieve Bend Screen |
Material: | Raw material: Low carton, low carton galvanized steel (LCG), stainless steel |
Properties: | wedge wire screen |
Application: | make animal feed ,filteration, dehydration |

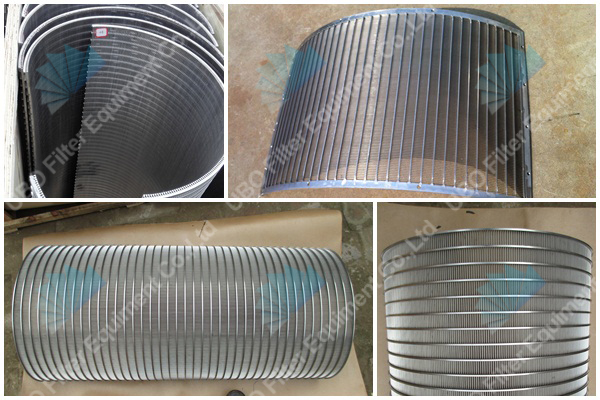

Wedge wire screen for food & beverage processing also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
The uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.
1 A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

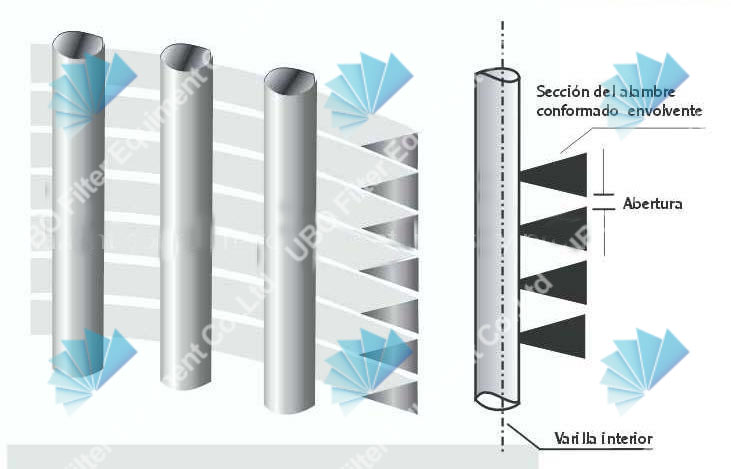

2 A "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3 A uniform and efficient well development due to the continuous slot opening.
4 Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5 Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Width |
from 25mm to 1200mm. |
Radian |
60º 120º or according to your special requirement |
