stainless steel casing pipe

Product Code: 2717
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry

Email to Us Start Order


Email:sales@ubooem.com

Description of stainless steel casing pipe


Stainless steel casing pipes are made from V shaped profile wire , which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process . This spacing gives passage for water to enter .The entire process is completed on fully computerizes machines . The pitch of winding gives different spacing between two adjacent turns of wire.

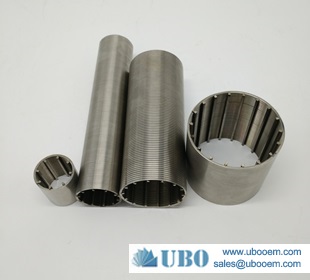

stainless steel casing pipe



Features of stainless steel casing pipe



stainless steel casing pipe have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.



Usages of stainless steel casing pipe



stainless steel screen pipe is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

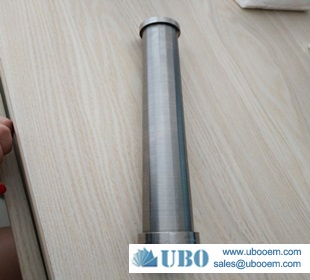

stainless steel casing pipe

Specification of the stainless steel casing pipe



stainless steel casing pipe

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Production And Sales of stainless steel casing pipe


stainless steel casing pipe
