Wedge wrapped wire screen cylinder filter strainer basket for seperation system

Product Code: 3655
Category:Centrifuge Screens&Baskets
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:centrifuge screens and baskets
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge wrapped wire screen cylinder filter strainer basket for seperation system


Wedge wrapped wire screen cylinder filter strainer basket for seperation system is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.



Feature of Wedge wrapped wire screen cylinder filter strainer basket for seperation system

Composed of surface profile;
High open area;
Non clogging filter surface;
Spirally wrapped around the axial support profile;
Accurate, narrow slot openings;
Triangular wedge wire design creates orifice effect Cake discharge by back washing.


Application of Wedge wrapped wire screen cylinder filter strainer basket for seperation system

Wedge wrapped wire screen cylinder filter strainer basket is made of wedge shape stainless steel wire. And it is widely used in Oil Refining /beverage / beer filtration, paper making industry, industrial waste water treatment, oil, water desalination and etc.

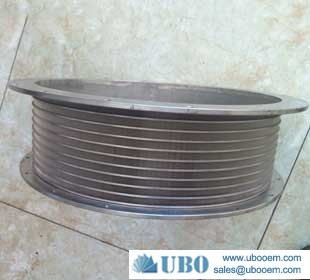

Wedge wrapped wire screen cylinder filter strainer basket for seperation system

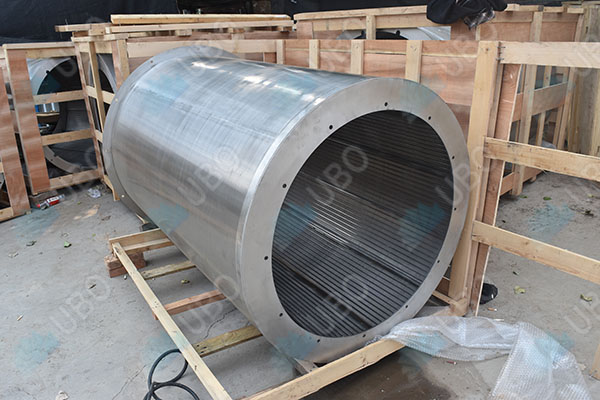

Wedge wrapped wire screen cylinder filter strainer basket for seperation system

Specification of the Wedge wrapped wire screen cylinder filter strainer basket for seperation system

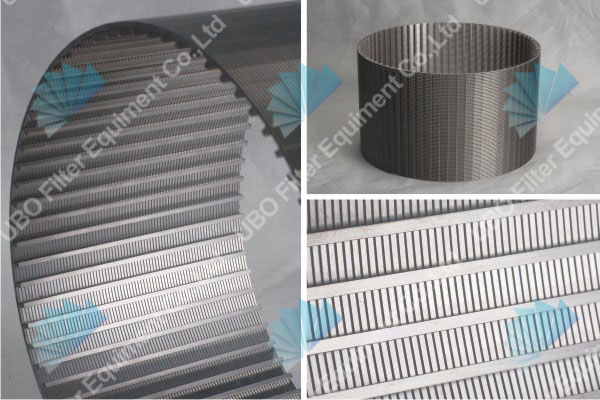

Wedge wrapped wire screen cylinder filter strainer basket for seperation system

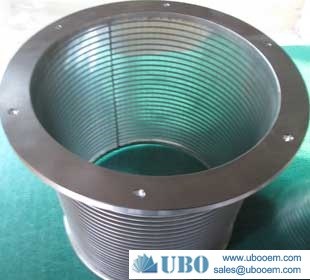

Wedge Wire Screen Cylinders Basket
Material: Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging from 1 inch -----45 inch.
Length: lengths up to 6 meters.
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Flange: according to your request

Production And Sales of Wedge wrapped wire screen cylinder filter strainer basket for seperation system
