Category: | Sieve Plate Screen |
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | flat wedge wire screen panel |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |

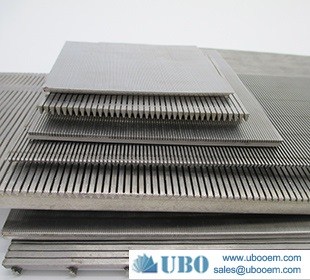

Wedge wire screen Wedge Wire welding screen panel is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .
The wedge wire screen Wedge Wire welding screen panels are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Wedge wire screens are the most popular mining screen due to its strength.
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
Length Range |
Up to 6000mm |
||||||
Width Range |
Up to 6000mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Other Shapes |
Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2 |
2x3 |
2x4 |
3x5 |
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.8x2.5 2x3 |
2x3 2x4 3x5 3x6 3x10 4x7 |
2x4 3x5 3x6 3x10 4x7 5x6 |
3x5 3x6 3x10 4x7 5x6 5x8 |
End Finishing |
With the frame, without any frame, according to request. |
||||||
Note |
Customized According To Requirement |
