Wedge wire pressure screen basket manufacturer

Product Code: 3615
Category:Centrifuge Screens&Baskets
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen basket
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge wire pressure screen basket manufacturer


Wedge wire pressure screen baskets are highly efficient cylindrical rotating wedge wire screen basket used to separate solids from liquids or solids from solids. The flow of material is fed into the inside of the drum and the screen where the centrifuge rotating action forces any particles smaller than the slot size through the screen and any particles larger than the slot size off the end of the screen. The wedge shape of the profile wires help minimise pegging and blinding. UBO supplies complete trommel units, including a motor and base frame, or a replacement screen for existing units.

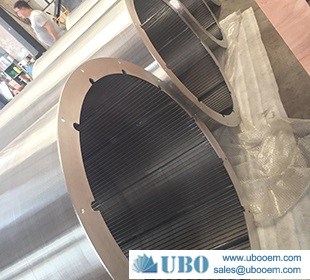

Wedge wire pressure screen basket manufacturer

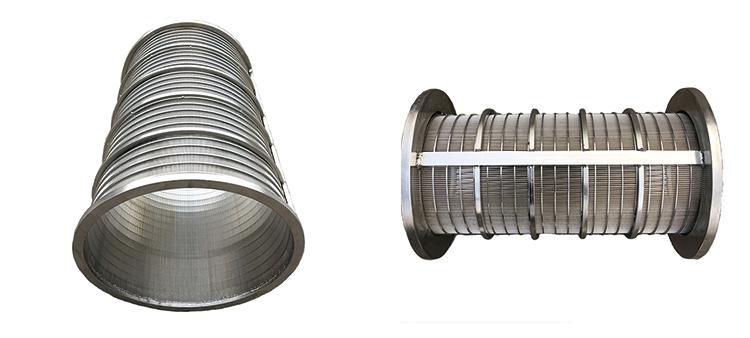

Wedge wire pressure screen basket manufacturer

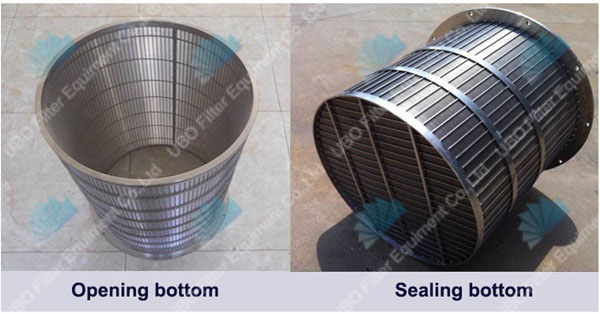

Wedge wire pressure screen basket manufacturer

Application of Wedge wire pressure screen basket

• Sugar industry
• Fruit processing industry
• Mineral processing
• Sewerage treatment
• Fertilizer processing
• Abattoirs
• Water treatment


Features and Benefits of Wedge wire pressure screen basket


• Long lasting stainless steel
• Higher flow capacities
• Lower capital cost and maintenance
• Wedge wire pressure screen baskets available in a range of sizes, profile wires, apertures and material grades to suit every application

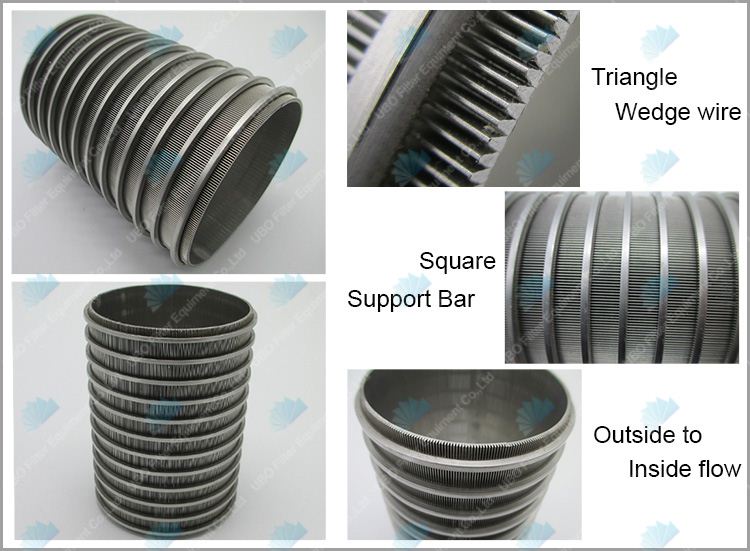

Wedge wire pressure screen basket manufacturer

Specification of the Wedge wire pressure screen basket manufacturer

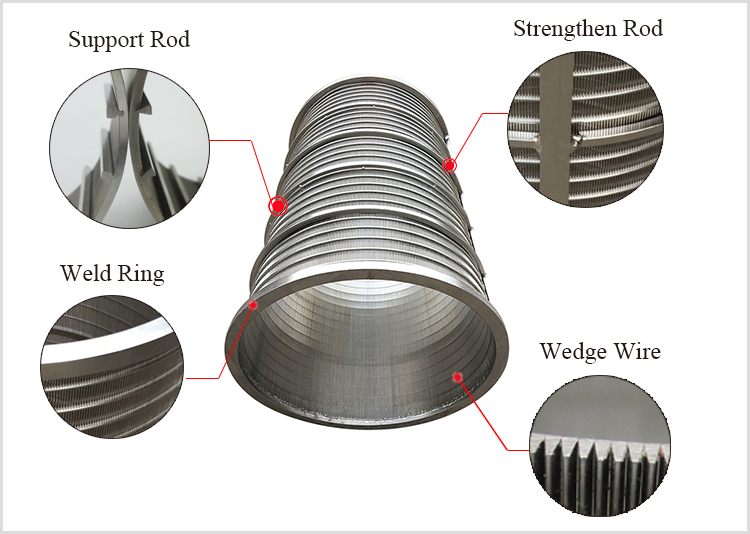

Wedge wire pressure screen basket manufacturer

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Flange, Metal Ring, Cross Connector, closed, etc

Note

Customized According To Requirement
