| Category: | Lauter Tun Screen |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |

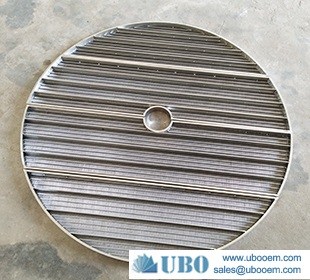

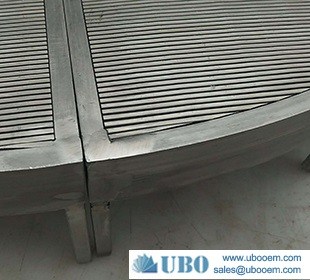

Wedge wire lauter tun screen is popularly used in making of beer, is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).
The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries.
High mechanical strength, can withstand greater pressure
Uniform aperture, form uniform filter cake, beneficial backwash regeneration
Wedge-shaped filter gap, improve backwash regeneration capacity
High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.
|
Name: |
Wedge wire screen panel |
|
Material: |
stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 1.50 2.00 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 1.00 1.80 2.00 3.00 4.00 5.00 |
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00 |
|
|
Diameter： |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved request. |
|
Pitch: |
10-300mm |
|
Note: |
Other specifications can be customized according to your requirement |
