| Category: | Header-Lateral |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | hub lateral |
| Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |

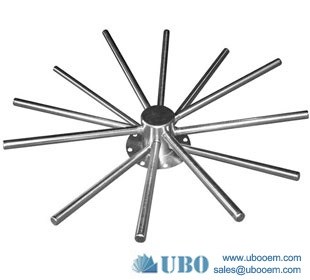

The wedge wire hub lateral water distributor is designed for industrial or commercial water treatment and wastewater treatment systems. And the hub lateral suitable for diameters from 8 "to 96" pressure vessel. It is made of high quality stainless steel. The unique design ensures the entire uniformity of the flow velocity distribution in presure vessel. What's more, the special design avoid the occurrence of short circuit. By the way, the rational design of opening the slit also ensures a minimum pressure requirements.
hub and header lateral screen consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.

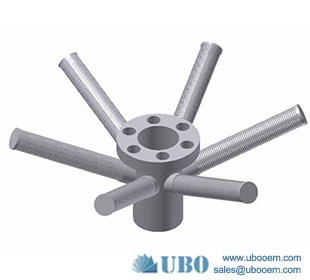

different kinds of Wedge wire hub lateral water distributor
| Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc | ||
| Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
| Lateral OD Range (mm) | 25 to 80mm, customized | ||
| Normal Hub (mm) | 108, 133, 219, Customized | ||
| Hub and lateral connector types | Thread, Flange | ||
| Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
| Slot Range(mm) |
Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm. Slot according to request. |
||
| Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
| Support Rod (mm) |
1.5x2.5 2x3 |
1.8x2.5 2x3 |
2x3 2x4 |
| Note | Customized According To Requirement | ||
