Category: | Wedge Wire Screen Cylinders |
Material: | Stainless Steel 304 |
Properties: | wedge wire screen |
Application: | It can be mainly used in industry, agriculture(Rice filter), building, transportation,mine |

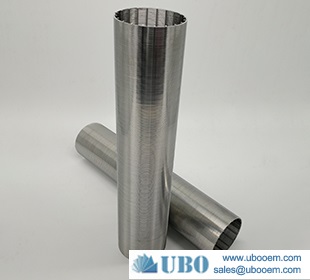

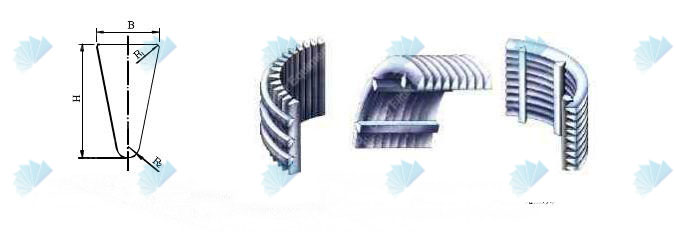

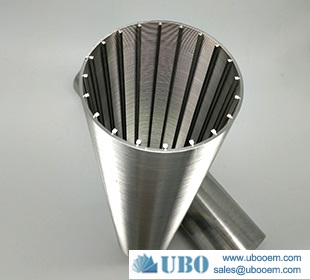

Wedge wire Screen cylinders are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Wedge wire Screen cylinders have a structure and high open area, as well as accurate slot dimension. At the same time, Wedge wire Screen cylinder have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
1.galvanized wedge wire screen,
2.hot-dip galvanized wedge wire screen(galvanized before wedge or galvanized after wedge
3.coated welded wire mesh(Colors available is green,blue,white or other colors at customers request.)
4.wedge stainless steel wire mesh,
5.heavy type welded mesh
it have the characteristics of corrosion-resisting and oxidation-resisting,
The wire mesh can be supplied in rolls or cut into panels(width from 0.5meter to 3 meter).
It can be mainly used in industry, agriculture(Rice filter), building, transportation, mine, field,
lawn, cultivation, profession's guard, decorate, machine protection and etc.
Ubo is specialized in producing and distributing fuel dispenser filter,vane pump filters,Gear Pump filter,oil filter,gas filter,Tokheim,Gilbarco and Dresser wayne filter etc.
Welcome to contact us for more information and cooperation.0086-0311-83289301.
Size
(inch)
|
O.D
(mm)
|
Slot
(inch)
|
Collapse Strength
(Psi)
|
Tensile Weight
(Ton)
|
Wrap(thick*deep)
(mm)
|
Rods
(mm)
|
4
|
117
|
0.04
|
395
|
6
|
2.2*3.0
|
3.8mm/22
|
4
|
114.3
|
0.04
|
395
|
6
|
2.3*3.0
|
3.8mm/22
|
6
|
168.3
|
0.04
|
252
|
8
|
2.3*3.5
|
3.8mm/32
|
8
|
219.1
|
0.01
|
399
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.02
|
370
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.04
|
323
|
10.5
|
3.0*5.0
|
3.8mm/48
|
10
|
273.1
|
0.01
|
206
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.02
|
191
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.04
|
167
|
11
|
3.0*5.0
|
3.8mm/50
|
