Wedge Wire Wrapped Parabolic Screen Filter

Product Code: 3626
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire Wrapped Parabolic Screen Filter


Wedge wire parabolic screen filter, sometimes referred to as side hill,DSM screen,arc screen, etc. It is used for the removal of large insoluble material from an aqueous solution. Screens are used on process and waste water streams for particles that need to be removed to protect downstream systems. The wedge wire parabolic filter can also be used for product recovery; large solids separation and mixed settleable solids for both municipal and industrial applications.

The UBO series parabolic filter maximize solids removal in an easy to maintain unit. The screen is a barrier by which material larger than the gap or slot size may not pass, allowing the water to continue through.

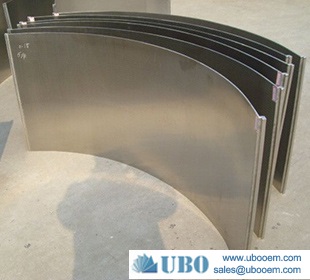

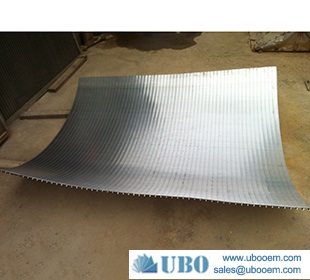

Wedge wire parabolic screen filter

How to use wedge wire parabolic screen filter

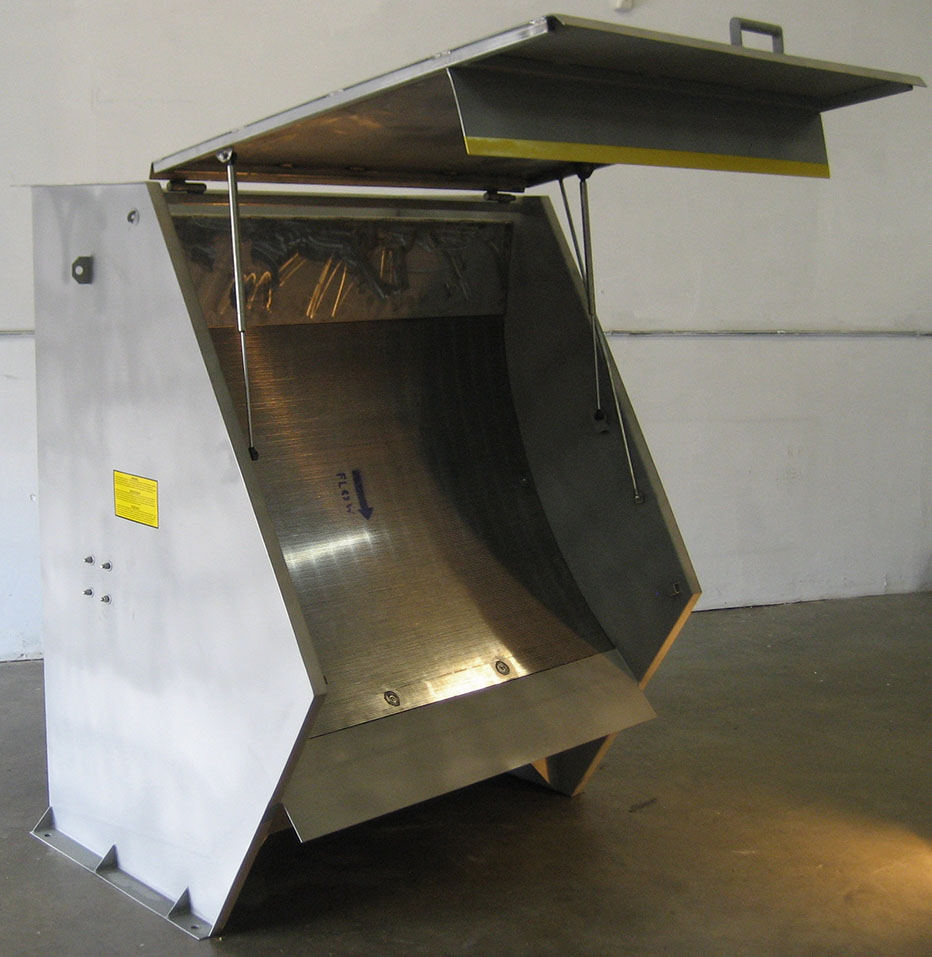

The side hill screen operates by feeding the solids laden influent water to the headbox. The water then flows over a distribution weir onto the steeply angled screen surface. Solids ride the screen to it’s base and fall off at the discharge lip into a waiting receptacle for disposal. The water passes directly through the screen to a collection pan.

Application of wedge wire parabolic screen filter

-- Bio-fuels
-- Brewing
-- Corn wet milling
-- Ethanol
-- Malting
-- Starch
-- Sugar

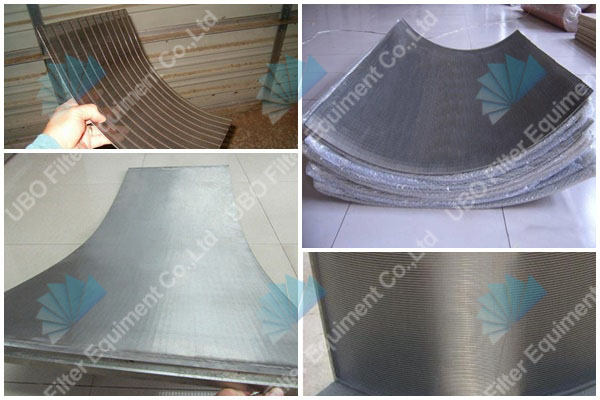

Wedge wire parabolic screen filter

Wedge wire parabolic screen filter

Specification of the Wedge Wire Wrapped Parabolic Screen Filter


Details of Wedge wire parabolic screen filter

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Production And Sales of Wedge Wire Wrapped Parabolic Screen Filter


Package: in wood case

Delivery: 10-20 days
