Wedge Wire Water Well Filter Screen

Our high quality custom built flat panel wedge wire screens, manufactured either framed or unframed with a variety of support rods, offers a high strength, long lasting, economical solution to the market. They come in commonly shaped wedge wire profiles and offer good screening efficiency across a wide range of applications. Flat wedge wire screens are excellent for use to de-water, de-slim, drain and rinse, wet classify, dry classify, filter, dry and cool. They are recommended for use in any application that requires efficient liquid-solid separation.

Features of Wedge Wire Wedge Wire Water Well Filter Screen

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Application of Wedge Wire wedge wire water well filter screen

flat panel wedge wire screens are used in Petrochemical, Fish Diversion, Pulp & Paper, Waste Water, Food, and Architectural industries.

-- Resistance welded to offer high strength, small slot openings and large open area

-- Wedge wire widths starting at .030”.

-- Manufactured slot openings from 0.005”.

-- Standard in 304 and 316 stainless.

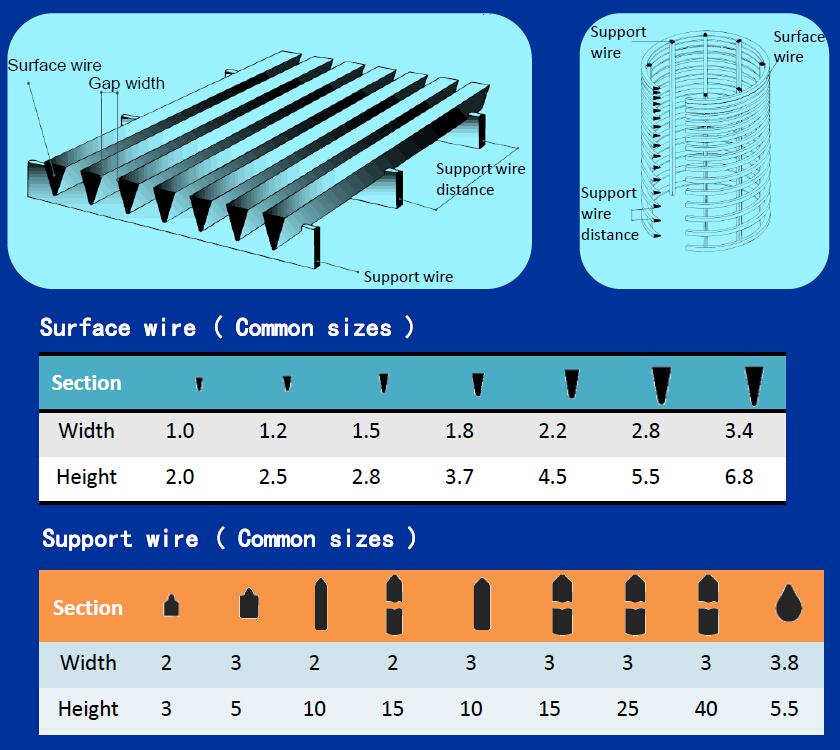

Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.
Open area: up to 60%.
Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).
Lengths up to 6 meters.
Width: ranging from 25 to 2000mm.
