| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel |
| Properties: | wedge wire screen |
| Application: | for Geothermal Wells |

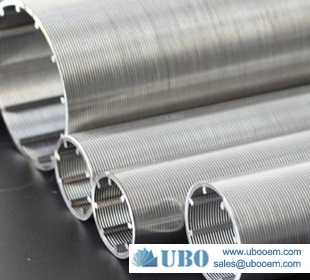

Wedge Wire Screens special consist of V shape profile wire and the longitudinal support rods. Each intersecting point the V shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to these wires is fushion welded, so it has studry construction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better. Meanwhile, the slot can change according to the real condition of the earth. if you are interested in our products, please contact us for accurate information.
wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Diameter |
from 25mm to 1200mm. |
|
End connection |
Plain beveled ends, flanged or threaded couplings |
