Wedge Wire Screen Support Grids

The support grid is a flat screen that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters UBO support grids are fabricated in segments to allow installation through a vessel man-way.

Application of Wedge Wire Screen Support Grids

UBO have stainless steel wedge wire screen grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements

Features of Wedge Wire Screen Support Grids

-No Risk

-Capability to withstand heavy loads

-Mechanical Strength

-Permanently Resiliency

-Low Maintenance cost

-Long service life

-No-blocking

-Various choose of the wire specification

-Various materials

UBO Support Grids General Information

 Advantage of Wedge Wire Screen Support Grids

These self-supporting structures have exceptional resistance to collapsing or buckling, even in operations where screens must withstand extremely high loads. The slot size can be designed for direct media retention.

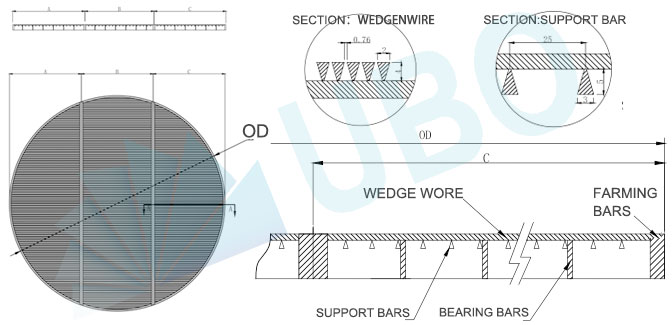

Specification of Support Grid

These self-supporting structures have exceptional resistance to collapsing or buckling, even in operations where screens must withstand extremely high loads. The slot size can be designed for direct media retention.

Diameter: customization

Material: AISI304, AISI316, AISI430, Customer request

Min Slot: 0.02mm

Max Slot: according to customer's request

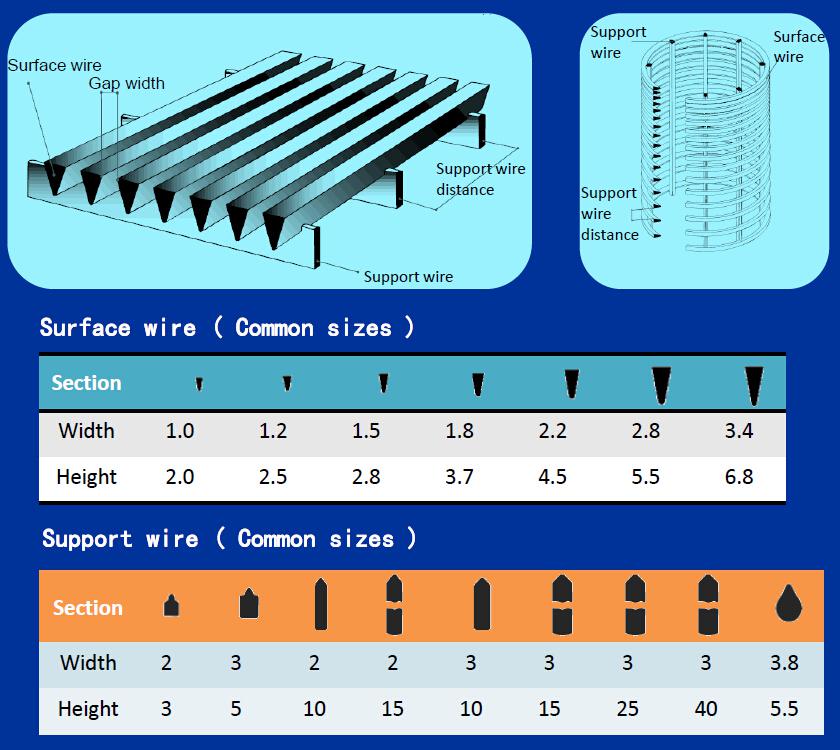

Wedge wire:1.5X2.0, 1.5X2.5, 2.0X3.5 ,3.0X4.5, 3.0X5.5,3.5X5.0mm

Support bar: According to the wedge wire or customers' request

Some of our design for our customer

These self-supporting structures have exceptional resistance to collapsing or buckling, even in operations where screens must withstand extremely high loads. The slot size can be designed for direct media retention.

UBO uauall take notice of every details, and always ensure all the products make the customer satisfy,  The package is also import in the international transportion.
