| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request |
| Properties: | filter nozzle |
| Application: | solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater |

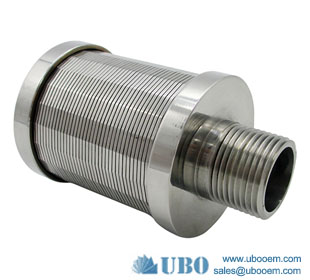

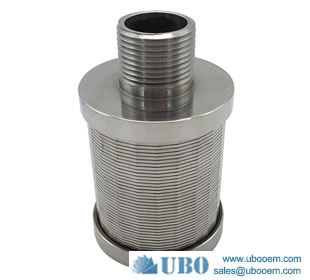

Welded Wedge Wire type filter screen nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.
Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
1) Excellent roundness
2) Very good slot width precision
3) High mechanical load capacity
4) No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
5) Automated welding process for high-precision manufacturing
6) Perfectly adjusted screen basket profiles
7) Available for all screens
8) Surface finishing as required
 |
|||||||
|
Type |
Slot (mm) |
Dimension |
Flow Rating (M3/H) |
||||
|
D(mm) |
H(MM) |
L(MM) |
Thread |
Fittings |
|||
|
UBO-0.5 |
0.25 |
45 |
45 |
90/request |
M,NPT, G, PT(BSPT),Z,BSP, request |
SS Gasket, Rubber gasket, Nut, request |
0.5 |
|
UBO-1.0 |
0.25 |
53 |
45 |
90/request |
1.0 |
||
|
UBO-1.5 |
0.25 |
57 |
45 |
90/request |
1.5 |
||
|
UBO-2.0 |
0.25 |
57 |
55 |
100/request |
2.0 |
||
|
UBO-2.5 |
0.25 |
70 |
55 |
100/request |
2.5 |
||
|
UBO-3.0 |
0.25 |
70 |
70 |
120/request |
3.0 |
||
|
|
* All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
||||||
