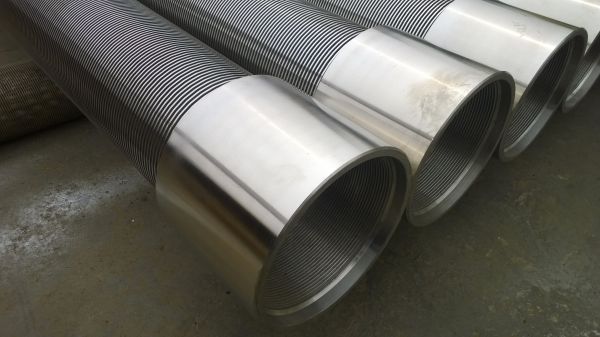

| Category: | Wedge Wire Screen Cylinders |
| Material: | Stainless steel 316 |
| Properties: | wedge wire screen cylinders |
| Application: | water filtration,liquid filtration,industry filtration,food filtration |
Slot Tubes Radial Slot Execution For filtration from the inside to the outside (FITO). The profiles are welded with the widest profile dimension outermost to the internal support bars. The inside working surface is interrupted by the path of support bars.
wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.
Reduced consumption of treated water for backwashin
Savings in filter height and volume
No maintenance, repair or shutdown
No need for suspended filter floor
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.
|
Screen Size
|
ID
|
OD
|
Female thread dismeter
|
||||
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
in
|
mm
|
|
2
|
51
|
2
|
51
|
25/8
|
67
|
23/4
|
70
|
|
3
|
76
|
3
|
76
|
35/8
|
92
|
33/4
|
95
|
|
4
|
102
|
4
|
102
|
45/8
|
117
|
43/4
|
121
|
|
5
|
127
|
5
|
127
|
55/8
|
143
|
53/4
|
146
|
|
6
|
152
|
6
|
152
|
65/8
|
168
|
7
|
178
|
|
8
|
203
|
8
|
203
|
85/8
|
219
|
91/4
|
235
|
|
10
|
254
|
10
|
254
|
103/4
|
273
|
113/8
|
289
|
|
12
|
305
|
12
|
305
|
123/4
|
324
|
133/8
|
340
|
|
14
|
356
|
13 1/8
|
333
|
14
|
356
|
-
|
-
|
|
16
|
406
|
15
|
381
|
16
|
406
|
-
|
-
|
|
20
|
508
|
18 3/5
|
476
|
20
|
508
|
-
|
-
|
Ubo Filter Co.,Ltd is specialized in producing and distributing Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,V shaped wire welded screens,Spiral screen tube,Wire-wrap screen pipe,Mine screen mesh,Screen cylinders,Vibrating sieve screen plate.
Welcome to contact us for more information and cooperation.0086-0311-83289301
