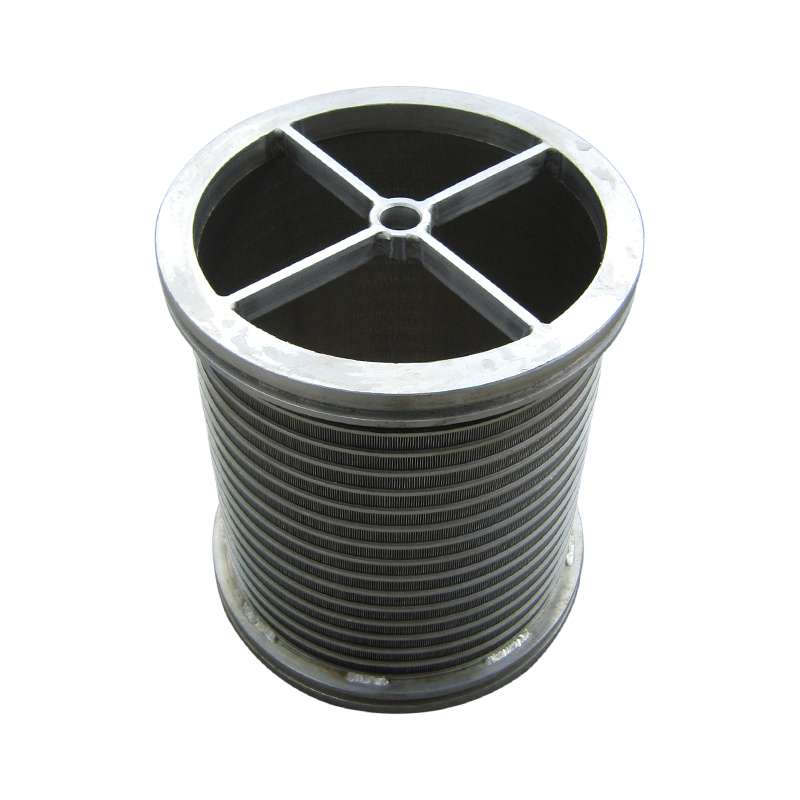

Screen Cylinders / Rotary Screen Drums

              Wedge Wire cylinders are used as rotary screens, collectors such as screen laterals and nozzles,resin traps,  in-line strainers,  water intake screens, well screens, as well as many other applications involving liquid / solids separation.

              Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above) or they can be positioned axially on the inside of the cylinder (below).

              Screen cylinders are manufactured in various diameters from 1/2" pipe size to 36" diameter.
  Screen cylinders can be fabricated into much larger sizes.  Each intersection of wedge wire and support rod is welded for strength and durability.  Various wedge wire and support rod combinations can be used  to produce the best screen design.

               Rotary Screens typically use wedgewire for the screening media.  The externally fed unit (below) has a  spiral wound  wedgewire screen drum 36" OD x 120" long.

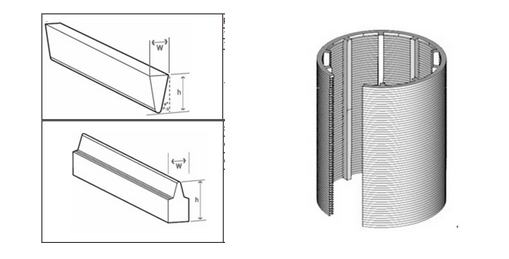

  Industrial wegde wire screen pipe manufactory is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

Characteristics of IScreen Cylinders / Rotary Screen Drums

The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Uses of Screen Cylinders / Rotary Screen Drums

The stainless steel wire screen can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
