Rotary Drum Screen Filter

Product Code: 3360
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water treatment, oilfield, mining, water well,food industry, filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of Rotary Drum Screen Filter


YUBO manufacturer of rotary drum screen in china.Rotary drum screen cylinders are manufactured in various diameters from 1/2" pipe size to 36" diameter. Screen cylinders can be fabricated into much larger sizes. Each intersection of wedge wire and support rod is welded for strength and durability. Variou wedge wire and support rod combinations can be used to produce the best screen design.

Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder.Rotary Screens typically use wedgewire for the screening media.The externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.Please tell us your demand and then we design ,manufacture for you.

Rotary drum screen filter


Application of Rotary Drum Screen Filter

1) Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.

3) Chemical industry: fertilizer industry etc.

4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.

5) Metallurgy, construction, building materials, abrasives, and other industries.


Advantages of Rotary Drum Screen Filter

1) Trommel drum screen mainly consists of motor, reducer, drum units, racks, etc.

2) Installation of small angle, it is not easy to block

3) Occupy a small space

4) Low noise and little dust pollution

5) High screening efficiency

Specification of the Rotary Drum Screen Filter


Raw material:SS321,SS304,SS316,SS316L,TaGr2,Low carbon,Hastelloy-C alloy Stainless steel wedge wire screen.
Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,
Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,
Length: 0.05m-6m,
OD: 25mm to 800mm,
Surface treatment: polishing , chroming.

Model Mixed Juice Capacity (t/hr) Drum Diameter (mm) Drum Length (mm) Drive (KW) Feed (inlet) Size Discharge (outlet) Size Approx. Mass (kg)
WT610 40 600 1000 1.5 DN100 DN150 535
WT615 73 600 1500 1.5 DN100 DN150 650
WT1015 99 1000 1500 2.5 DN150 DN200 1050
WT1018 132 1000 1800 2.5 DN150 DN200 1170
WT1518 165 1500 1800 4.0 DN200 DN250 1775
WT1521 214 1500 2100 4.0 DN250 DN300 1940
WT1524 264 1500 1400 5.5 DN250 DN300 2130
WT1824 277 1800 1400 5.5 DN300 DN350 3670
WT1830 396 1800 3000 7.5 DN300 DN350 3040
WT1836 515 1800 3600 7.5 DN350 DN400 3425
WT2136 554 2100 3600 11.0 DN400 DN450 4125
WT2142 693 2100 4200 15.0 DN400 DN450 4575
WT2148 831 2100 4800 15.0 DN450 DN500

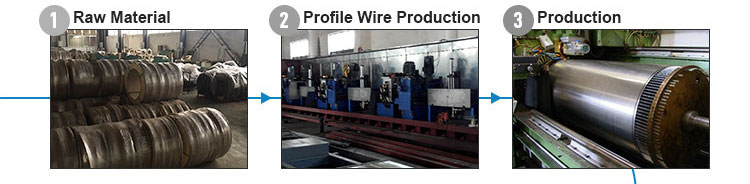

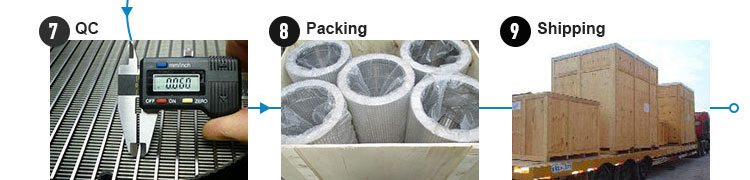

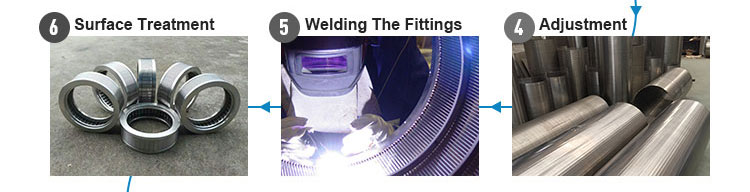

Production And Sales of Rotary Drum Screen Filter


Rotary drum screen filterRotary drum screen filterRotary drum screen filter
