Category: | Lauter Tun Screen |
Material: | stainless steel |
Properties: | wedge wire screen |
Application: | water filtration,liquid filtration,industry filtration,food filtration |
Lauter Tun vessels are used in the craft beer brewing process between the mash tun and the brew kettle. The lauter tun separates the barley husks from the clear liquid wort. The barley husks provide a natural filter bed through which the wort is strained and drains out of the lauter tun as a clear liquid.

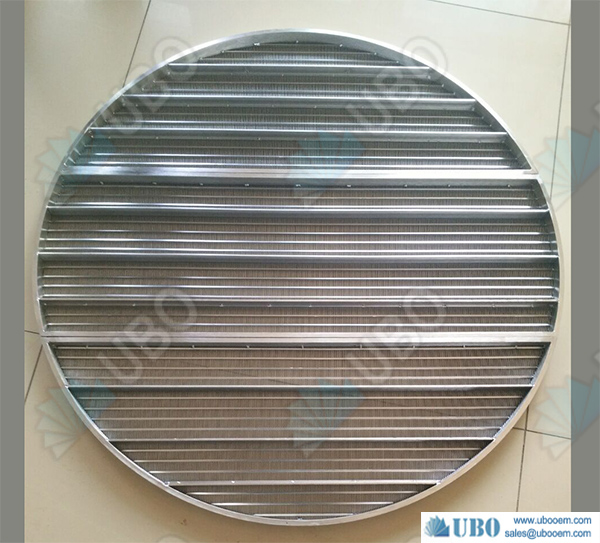

False bottom screens can be constructed using round support rods or rectangular support rods.

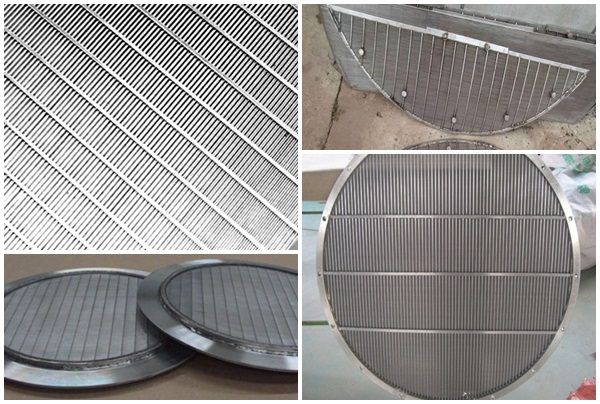

Wedge wire screen is the preferred false bottom for lauter tun tanks in many breweries.

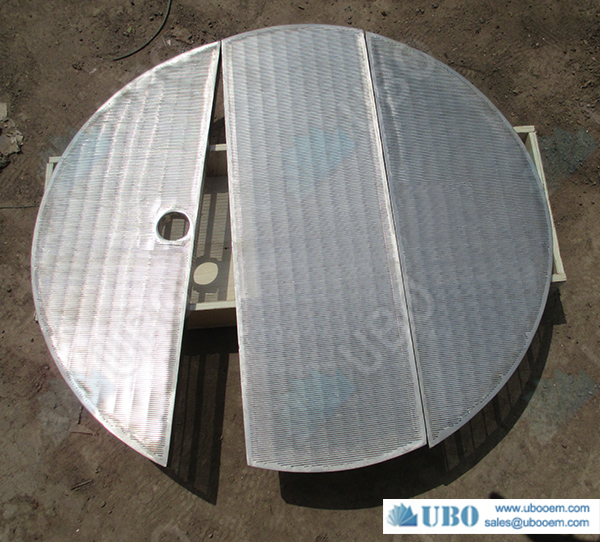

The stainless steel wedge wire screen can be made in sections to fit through any
man-way. Typically, the wedge wire false bottom screen has .030" slot openings to
hold back the solids and allow liquid to pass through.
- flatness to within tight tolerances
- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
- accurate distance between support profiles
- possibility of different support wires in one screen
- possibility of variable spacing between support wires in one screen
vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.
Example of Lauter Tun Wedge Wire Screen False Bottom description:
59 3/4" OD made in 4 sections
93V wedgewire on 1/8" x 7/8" support rods at 2" centers
.030" nominal slot openings
3/16" x 1" banding around each section
all 304 stainless steel
Specification (Profile wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 |
Specification (support rods): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other wires and rods can be customed according to your requests |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
Material: |
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.) |
Length |
Lengths up to 6 meters. |
Diameter |
ranging from 25mm to 800mm. |
End Connection |
Plain beveled ends for butt welding or threaded |
Packaging Detail: waterproof film into the wooden case in the container; waterproof film in bulk in the container; as per customer's requirements.
Delivery Detail: 15-20 days when receiving the bargain money
