Belt Filter Press

Product Code: 1883
Category:Sieve Bend Screen
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of Belt Filter Press


It is manufactured by a v or wedge shaped wire around an internal array of longitudinal supportrods. Each intersecting point of these wire is fusion welded.

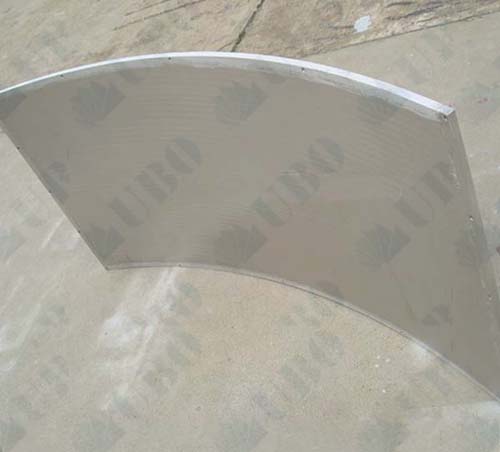

Belt Filter Press

Application for V Shaped Wire Welded Stainless Steel Screens :

Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.

Features for V Shaped Wire Welded Stainless Steel Screens :

Wedge Wire Screen have the features of great strength , precision , long service life and a wide range of applications in the field of process and engineering such as waste water treatment , sugar juice filtration , crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation , filtration of oils , greases , water , fuels , paints , food products , liquid cooling agents , and chemicals etc.

Characteristics for V Shaped Wire Welded Stainless Steel Screens :

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve back flushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Specification of the Belt Filter Press


Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

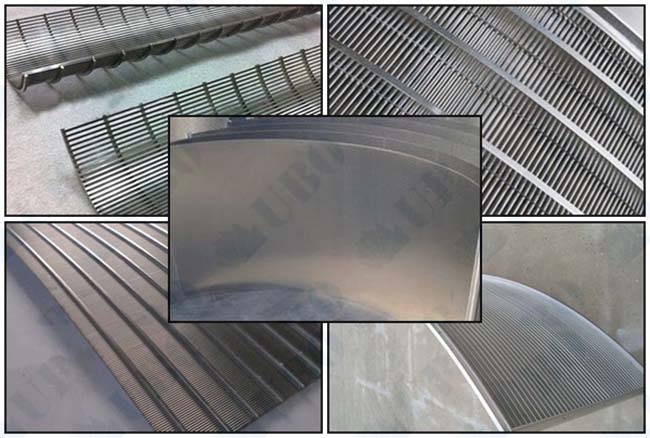

Production And Sales of Belt Filter Press


Belt Filter PressBelt Filter Press
