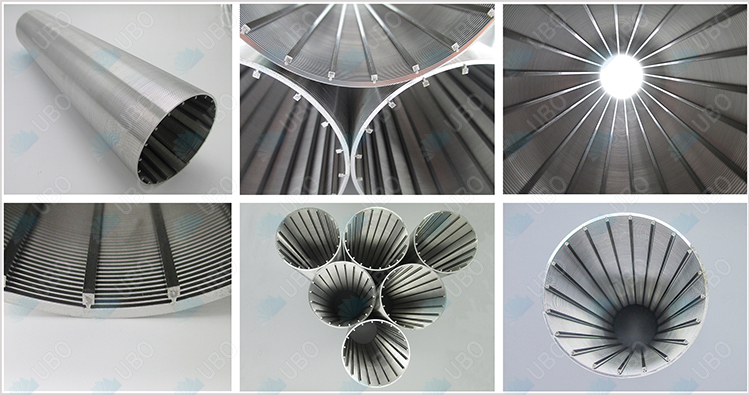

| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |

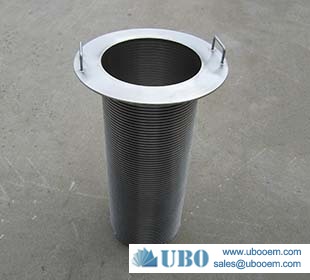

UBO v wire water well screens is made of qulity wedge wire screen pipe and joint , so that our products meet the needs of the most demanding applications. we are eager to establishing long-terms friendly cooperation with your esteemed company .

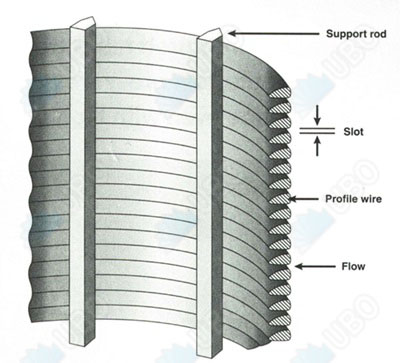

Profile wire is mainly triangle wire;
Support wire is mainly triangle wire ( wedge wire ) or round wire .
Mainly material: SS 201 , SS202 , SS302 , SS304 , SS304L, SS316, SS316L, SS316HC , SS321 , SS340 .
special specification could be customized .
OD range: 20-640mm.
slot starting from: 0.02mm
wire size could be customize
About Joint--- you could choose to connect different type joints .
one side is internal thread , the other side is external thread
A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
-- Beverage industry
-- Oil, cooling liquids & fuel filtration
-- Chemical industry
-- Water purification
-- power plants
-- mechanical engineering
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Diameter |
from 25mm to 1200mm. |
|
End connection |
Plain beveled ends, flanged or threaded couplings |
