| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
AISI316 slot sieve screen for oil well filteration is made of qulity stainless steel profile wire and support rod , accurate slot ensures that our products meet the needs of the most demanding applications. we are eager to establishing long-terms frindly cooperation with your esteemed company .
-- Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
-- Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
-- Used for fiber removal in Starch industry.

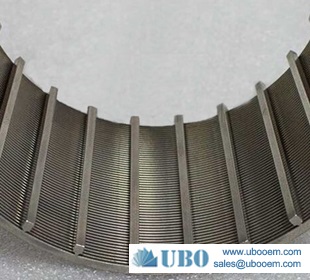

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Profile wire is mainly triangle wire;
Support wire is mainly triangle wire ( wedge wire )
OD range: 20-640mm.
slot starting from: 0.02mm .
Mainly material : stainless steel
Also special specification could be customized .
it could connect different type joints . such as : one side is internal thread , the other side is external thread
|
Size
(inch)
|
O.D
(mm)
|
Slot
(inch)
|
Collapse Strength
(Psi)
|
Tensile Weight
(Ton)
|
Wrap(thick*deep)
(mm)
|
Rods
(mm)
|
|
4
|
117
|
0.04
|
395
|
6
|
2.2*3.0
|
3.8mm/22
|
|
4
|
114.3
|
0.04
|
395
|
6
|
2.3*3.0
|
3.8mm/22
|
|
6
|
168.3
|
0.04
|
252
|
8
|
2.3*3.5
|
3.8mm/32
|
|
8
|
219.1
|
0.01
|
399
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
8
|
219.1
|
0.02
|
370
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
8
|
219.1
|
0.04
|
323
|
10.5
|
3.0*5.0
|
3.8mm/48
|
|
10
|
273.1
|
0.01
|
206
|
11
|
3.0*5.0
|
3.8mm/50
|
|
10
|
273.1
|
0.02
|
191
|
11
|
3.0*5.0
|
3.8mm/50
|
|
10
|
273.1
|
0.04
|
167
|
11
|
3.0*5.0
|
3.8mm/50
|
