| Category: | Wedge Wire Screen Cylinders |
| Material: | AISI304 |
| Properties: | wedge wire screen |
| Application: | water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment |

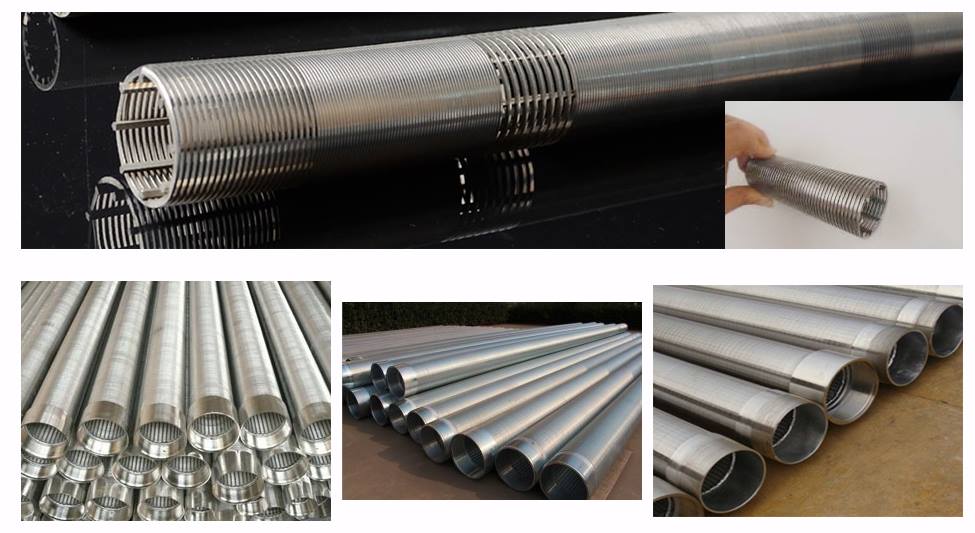

UBO's continous slot oil well screen pipes is made of qulity stainless steel profile wire and support rod , accurate slot ensures that our products meet the needs of the most demanding applications. we are eager to establishing long-terms frindly cooperation with your esteemed company .
Profile wire is mainly triangle wire;
Support wire is mainly triangle wire ( wedge wire ) or round wire .
OD range: 20-640mm.
slot starting from: 0.02mm .
Mainly material : ASTM 201 , ASTM202 , ASTM 302 , ASTM 304 , ASTM 304L, ASTM 316, ASTM 316L, ASTM 316HC , ASTM 321 , ASTM 340 .
Also special specification could be customized .
it could connect different type joints . such as:
one side is internal thread , the other side is external thread
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Diameter |
from 25mm to 1200mm. |
|
End connection |
Plain beveled ends, flanged or threaded couplings |
