pleated Corrugated filter

Product Code: 1585
Category:Pleated Filter
Material:Stainless Steel wire mesh304,316,316L
Properties:Stainless Steel Filter
Application:Filtration,liquids Filter,Hydraulic Filter

Email to Us Start Order


Email:sales@ubooem.com

Description of pleated Corrugated filter


The pleated Corrugated filterare stainless steel sintered fiber web and stainless steel weaving wire mesh.
Stainless steel sintered fiber web is a kind of multipore deep filter media, sintered with stainless steel fiber at the high temperature. The filter elements enjoy the advantage of high porosity, large filter area and good dirt holding capacity, and can also be used repeatly after chemical cleaning, etc.
Stainless steel weaving wire cloth is weaved with stainless steel wire. These filter elements have such characteristics of good strength, fastness, easy cleaning, high temperature resistance, low cost, etc.
Filter rating range from 3 to 200 microns are availlable,the sizes is available at customer’s requirement.

Features of pleated Corrugated filter

1, high quality
2, low cost
3, good strength, fastness, easy cleaning, high temperature resistance.
4,high porosity, large filter area and good dirt holding capacity
5,can be used repeatly after chemical cleaning
also have air filter, hydraulic filter, filter element ect.
application:
high molecular polymer, drug, hydraulic oil, water treatment, hot gas, food and beverage etc.

Use of pleated Corrugated filter

mainly used in filtration of high molecular polymer, drug, hydraulic oil, water treatment, hot gas, etc.

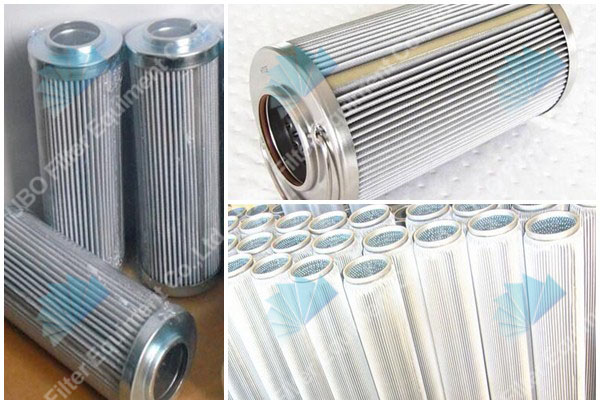

pleated Corrugated filter

Specification of the pleated Corrugated filter

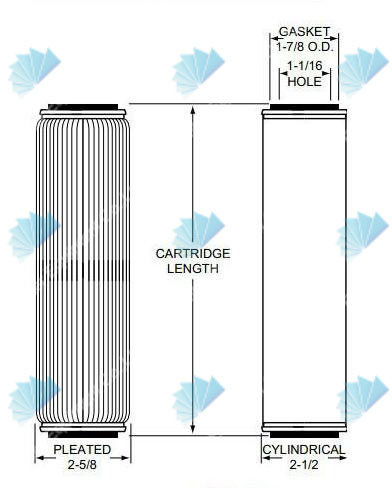

pleated Corrugated filter

Model

L
(mm)

D
(mm)

M

Filter Area

R(μm)

Filter Media

PF-65/250-R

250

65

226
223
220
215

0.135M2

3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75

Stainless steel sintered fiber web; stainless steel weaving wire cloth

Production And Sales of pleated Corrugated filter
