Truncated Conical Strainer

What is Truncated Conical Strainer

truncated conical strainer are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment against damage causing contamination present during start-up and commissioning.

The benefit of truncated conical strainer is acid and alkali-resistance, high temperature resistance, wear resistance, strong stress resistance.

Usually, truncated conical strainer are for temporary use and should be removed and thrown away after the initial cleaning of the system. Since these strainers are temporary, they need to be installed in a section of pipe such as a removable spool piece.

Truncated Conical Strainer comes in the following kinds to meet user requirement

1) stainless steel woven cloth conical strainers

2) carbon steel woven cloth conical strainers

3) galvanized woven cloth conical strainers

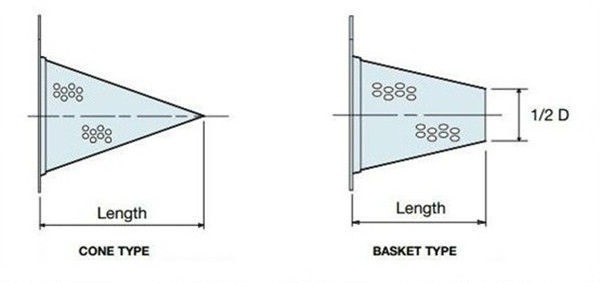

4) truncated conical strainer may be cone type, flat top type or basket type.

Cone Type

Size 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 5”, 6”, 8” , 10”, 12”, 14”, 16”, 18”, 20”, 24”, 30”

Flat-top Type

1- 1/2", 2", 2 -1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24"

Basket Type

1/2” , 3/4” , 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, 4”, 5”, 6” , 8”, 10”, 12” , 14”, 16”, 18”, 20”,
