Category: | Pleated Filter |
Material: | Stainless Steel wire mesh,Activated Carbon Fiber |
Properties: | Stainless Steel Filter |
Application: | Filtration,Air Filter,Hydraulic Filter |
With the assistance of our dexterous and skilled teammates, we are able to manufacture and export a wide stock of SS Pleated Filter Cartridge. Our cartridges are considered as the ideal choice for high viscosity applications with operating temperature of up to 250 degree C & above. These dust filtration cartridges retain high efficiency due to their excellent and fine dirt holding capacity. The complete stock of Pleated Activated Carbon Fiber Filter Cartridge is available for our customers at most competitive prices.

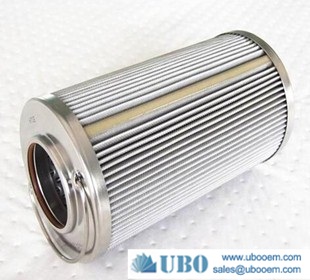

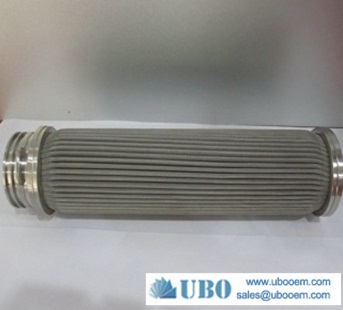

Pleated Activated Carbon Fiber Filter Cartridges are the optimum option for high viscosity & high temperature(250°C & above) applications. MOC is SS 316 or SS 304 or SS 316L forged. They render exceptional dependability for important usages and have superior dirt keeping ability. The cartridges are made for reusable and cleanable usages so as to remove regular cartridge alteration out.
Using excellent activated carbon fiber and polypropylene, the filter cartridge is thermally welded with high firmness and integrality
The Pleated Activated Carbon Fiber Filter Cartridge is designed for deep filtration with high flow rate and good absorption, and it has good chemical adaptability, can resist acid and alkali and has good absorption for chlorine, pigment and organic matters that smells.
Very high flow rates in both cylindrical and pleated designs
Heavy duty construction allows for very high differential pressures; up to 60 PSID
Low differential pressure allows filtration of very viscous solutions
Cartridges may be cleaned for extended life
Steam filtration
Corrosive gas & liquid filtration
Solid catalyst recovery
Beverage industry
Filtration of petrochemical products
Filtration of slurry oil
Vent applications
High temperature gas filtration
Fluidization
Chemical reagents
Highly viscous fluids
Sparging
Micron Rating |
1, 5, 10, 20, 40 µ |
MOC |
SS316L / SS 316/ SS 304 |

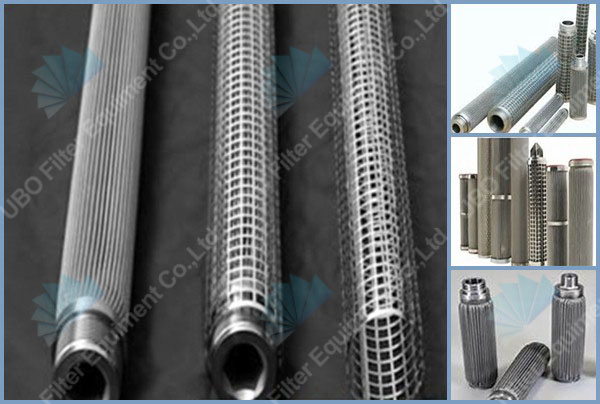

Core, End cap, support cage |
SS316L / SS 316/ SS304 |

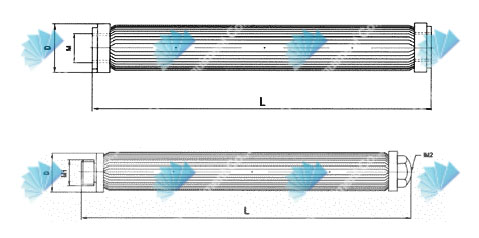

Length |
10” , 20”, 30”, 40” |
Inner dia |
Approx 28mm or customer specification |
Outer dia |
63mm, 70mm, 80mm |
O-ring material |
EPDM ,Buna-N, Silicone, Viton |
Effective Surface area |
7.5 Sq. feet (0.65sqm) per 10” cartridge element |
Max. Operating Temperature |
Up to 250 °C |
Sterilization |
121°C, 30min |
