Cone Mesh Filter

Product Code: 1644
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Email:sales@ubooem.com

Description of Cone Mesh Filter

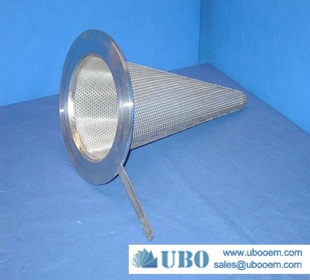

Cone Mesh Filter made of  a rolled perforated sheet in the form of a cone welded perpendicularly to a ring joint, the conical filter is easy to install and replace because it is positioned between two flanges of a pipe.
Filter suitable for high pressures, easy to maintain and replace and capable of filtration of more than 200% of the inlet area.


Major cone mesh filter materials available for pack filters and wire mesh discs: stainless steel woven wire cloth, stainless steel sintered web, phosphate bronze wire cloth and brass wire cloth, etc.

cone mesh filter Shapes: round, rectangle elliptical, other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Marginal materials for disc filters: stainless steel, aluminum and nickel-plated copper.
Sizes: meeting customers' specific requirements.

 Usage of Cone Mesh Filter

It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as
rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment
produce safely.

Features of Cone Mesh Filter

The stainless steel sintered cone filter has good permeability, high strength without increasing the support structure, absolutely no material off phenomenon, high temperature resistance, corrosion resistance, easy to clean, not easily damaged. Filter rating is 1~300um.

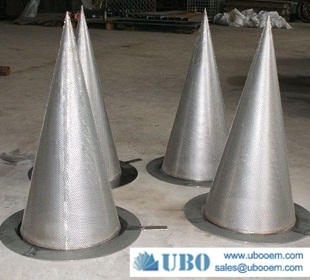

Cone Mesh Filter

Specification of the Cone Mesh Filter




nominal filter rating

 (um)

control layer

 (mesh)

permeability (%)

resistance factor

 (cm)

bubble point pressure

(mm H2O)

thickness(mm)

weight(kg/m2)

2

325*2400

38

14*105

280-640

1.7

8.4

5

200*1400

38

12*105

250-600

1.7

8.4

10

165*1400

38

7*105

220-550

1.7

8.4

20

165*800

38

4*105

180-450

1.7

8.4

40

50*250

38

4*105

150-400

1.7

8.4
