Vertical Pressure Leaf Filter

Product Code: 2109
Category:Leaf Filters
Material:Stainless steel 316L
Properties:leaf filters
Application:Filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of Vertical Pressure Leaf Filter


Vertical Pressure Leaf Filter is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Vertical Pressure Leaf Filter

Application for Vertical Pressure Leaf Filter:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Features for Vertical Pressure Leaf Filter:

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

In Hot Selling All The World :

Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;Poland ; Holland ; Bulgaria ; Macedonia ;The USA ; Australian ; Brazil ; Romanian ;Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;

Specification of the Vertical Pressure Leaf Filter


Porosity:40%(max)
Aperture:2.5-160μm
Filtration precision:0.2μm-80μm
Filtration Efficiency:98% filtration accuracy under:0.1 - 80um
Compressive Strength:3.0Mpa/cm2

Filtering
Level
Filtration
Precision
um
Maximum
Hole
Diameter um
Permeability
M3/h.㎡.kpa

Thickness
mm
Compression
Strength
Mpa/cm2
S9
0.2
2.5
1.5
3
3.0
S8
0.5
4
3
3
3.0
S7
1.5
6
5
3
3.0
S6
2.5
10
15
3
3.0
S5
5
15
40
3
3.0
8
20
80
3
3.0
S4
10
30
120
3
3.0
S3
28
60
250
3
3.0
35
80
500
3
3.0
S2
40
100
800
3
3.0
S1
65
160
1000
3
3.0

Production And Sales of Vertical Pressure Leaf Filter

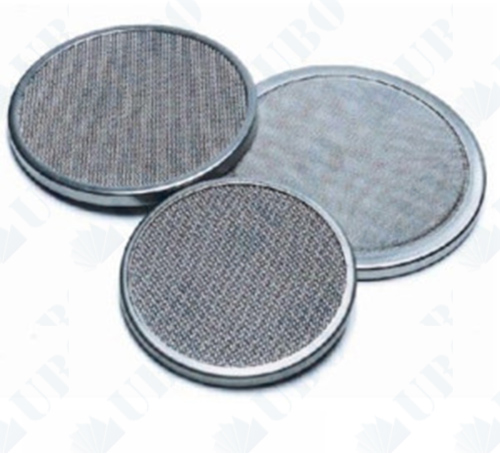

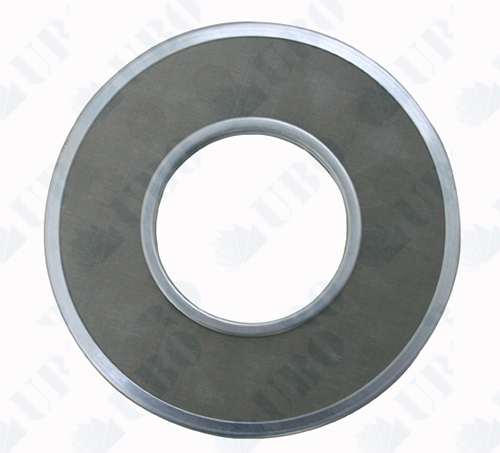

Vertical Pressure Leaf FilterVertical Pressure Leaf Filter
