| Category: | Leaf Filters |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | Filter disc |
| Application: | filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens |

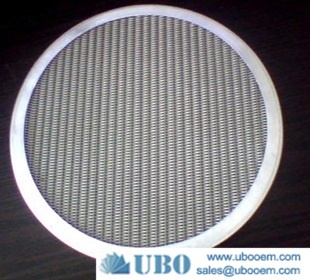

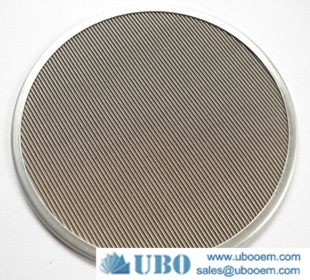

The Sintered Leaf Filters are made of 5-layer sintered wire mesh laminates.This kind of filter cartridge has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.
It's commonly used for the progress of distillation, sorption evaporation and filtration to clear up the fog drip and liquid form in petroleum, chemical, fertilizer, medicine, dye, metallurgy, machinery, construction, shipping, environmental protection, textile and other industries.
The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration.
|
Mesh
|
Wire dia (mm)
|
Material (AISI)
|
|
12*64
|
0.58/0.40
|
304 ,316
|
|
24*110
|
0.36/0.25
|
304 ,316
|
|
14*88
|
0.50/0.33
|
304 ,316
|
|
30*150
|
0.18/0.14
|
304 ,316
|
|
40*200
|
0.14/0.11
|
304 ,316
|
|
50*250
|
0.10/0.071
|
304 ,316
|
|
80*700
|
0.06/0.05
|
304 ,316
|
|
165*800
|
0.071/0.04
|
304 ,316
|
|
200*1800
|
0.05/0.03
|
304 ,316
|
|
325*2300
|
0.03/0.025
|
316L
|
|
400*2800
|
0.03/0.02
|
316L
|
