SS 316L Filter Leaves

Product Code: 2114
Category:Leaf Filters
Material:Stainless steel 316L
Properties:leaf filters
Application:Filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of SS 316L Filter Leaves


UBO company is a trusted name in the industry for SS316L Filter Leaves, which is extensively used as oil and fuel filter, suction line strainer, extruder screen and pressure line filter. It is available in various sizes and shapes for meeting with the demands of the customers. Our range of filter disc is wide, owing to our sophisticated manufacturing facility and diligent group of professionals.

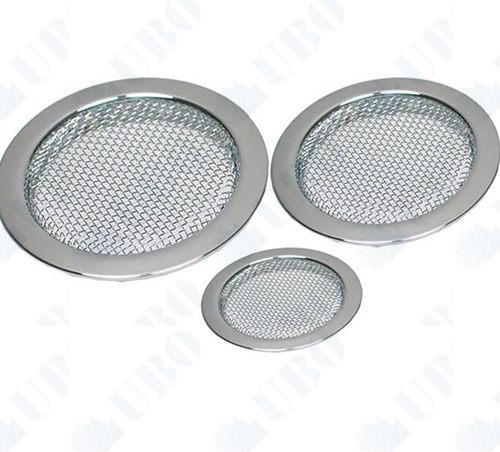

SUS316L Filter leaves

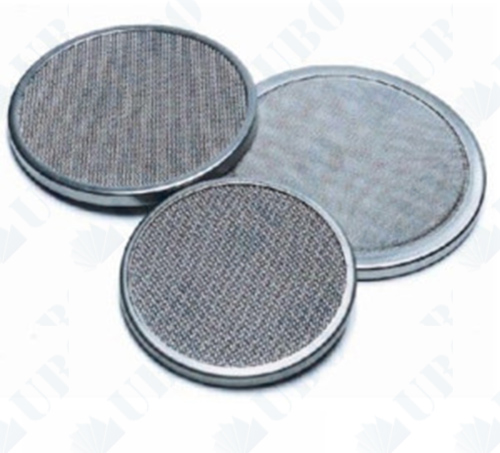

Micro filters discs are available in single and multiple layers with & without frame, multiple layers with spot welding.

This kind of Industrial Metal Leaf Filters is made of sintered wire mesh laminates or sintered metalfiber felt.

Features of SS316L Filter Leaves

Good planeness: using high quality material and every element are cold machined thermostatically in entire process after heat treatment. Perfect technical process guarantees planenss below 1.5‰.
High precision: using imported filter mesh, 100% checking materials and finished goods before sintered to certify every filter disc before delivery, so as to ensure filter precision. The volume of particles in liquid after filtration is less than 0.2ppm.
Big Flow: special sinter technology and mesh portfolio are cores of XL. On the premise of guaranteeing filter precision, flow can be increased 20%. In same working condition, efficiency can be increased 20% either.
Apertures are fine and uniform, no line marks. Consistent thickness of surface filter cake facilitates unloading of scraper blade during operation.
Good interchangeability: machining precision is up to 0.3‰, every filter disc can be interchangeable.

Applications of SS316L Filter leaves:

Widely used in polyester filtration,water treatment equipments,oil filteration,pharmacy factory,chemical filtration and etc.

Filter Shape:

Could be Cylinder,Cone,Disc and etc.

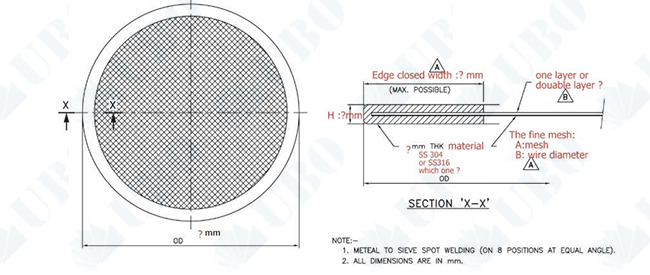

Specification of the SS 316L Filter Leaves


Product competitive advantage:

1, Material: SS316L, SS304 .

2, Long lifetime

3, No pollution

Product Specifications:

Area series ( ㎡)

Shell diameter series ( mm)

Work pressure ( Mpa)

Work temperature
(℃)

Proximate treatment
capacity (T/H·㎡)

5, 10, 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90, 100, 120,
140, 160, 180, 200

900, 1200, 1400, 1500, 1600,
1700, 1800, 2000

0.4

150

Oil

0.2





Beverage

0.8

Production And Sales of SS 316L Filter Leaves


Package: in wood case

Delivery Time:5-25 days
