Leaf Disk Filters

Product Code: 2108
Category:Leaf Filters
Material:Stainless steel 316
Properties:leaf filters
Application:Filtration,transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Leaf Disk Filters


Sintered wire mesh leaf filter is made of 5layer sintered wire mesh,multi sintered wire meshes or perforated sintered mesh according to different applications.



Application for Leaf Disk Filters:



The Leaf Disk Filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries.



Feature for Leaf Disk Filters:



-- Stable pore shapes
-- High permeability
-- Low pressure drop
-- High dirt-holding capacity (longer lifetime)
-- High temperature resistance
-- High differential pressure with stand capacity
-- Strong corrosion resistant
-- Back flushing
-- Excellent mechanical strength
-- No media migration
-- Size customization
-- Various specifications are available as request.



Characteristics for Leaf Disk Filters:



Nagase provides not only a conventional wire mesh retainer supported leaf disk filter but also our original TP (Twisted Plate) retainer supported leaf disk filter, which can reduce the initial pressure drop, extend the on-stream life and achieve the easy cleaning, in a variety of sizes, hub designs, filtration efficiencies and types of porous metal filter media to meet every requirement.

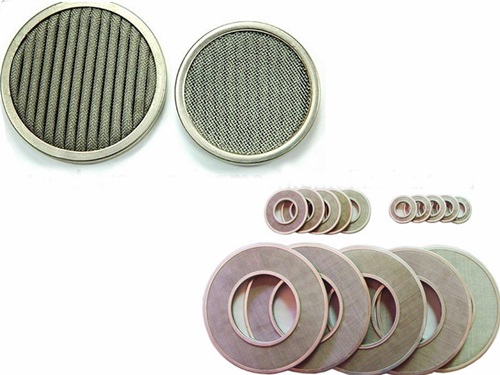

Leaf Disk Filters

Specification of the Leaf Disk Filters



4nch
5nch 7nch 8nch φ290mm 12nch
OD 111mm 149mm 177mm 222mm 290mm 304mm
ID A 38.1mm 38.1mm 47.6mm 47.6mm 63.5mm 63.5mm
     B 47.6mm 47.6mm 63.5mm 63.5mm 76.2mm 76.2mm
     C


76.2mm 85.2mm 85.2mm
     D



115.5mm 115.5mm
Specifications of Retainer
: Wire mesh or TP retainer
Filter Medium
: Sintered metal fiber, Sintered Metal Powder,
  Sintering wire mesh
Filtration accuracy
: 1~80μ(include development grade)

Production And Sales of Leaf Disk Filters
