Category: | Disc Filters |
Material: | Stainless steel 302,304,304L,316,316L |
Properties: | stainless steel filter |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |

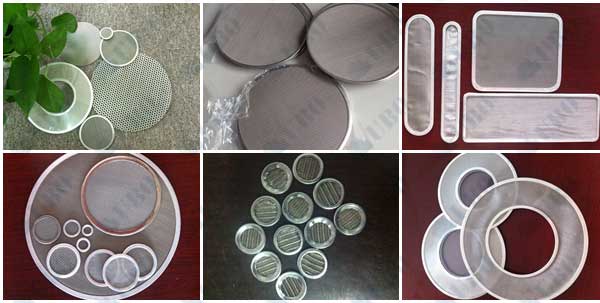

Wire mesh filter, also known as stainless steel wire mesh filter disc, is the most commonly used products.
The product is formed by cold stamping machine from stainless steel wire mesh, which is mainly made of SS 304, 316 or 316L material.
With it's high resistence for acid, alkali & heat, It's commonly used for the progress of distillation, sorption evaporation and filtration to clear up the fog drip and liquid form in petroleum, chemical, fertilizer, medicine, dye, metallurgy, machinery, construction, shipping, environmental protection, textile and other industries.
The filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries.
a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area

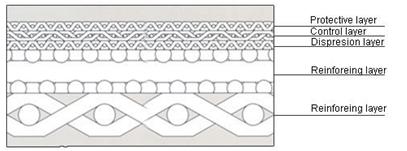

e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.
Mesh/Inch | Wire Diameter(mm) | Screen Thickness(mm) |
105 | 0.075 | 0.14 |
120 | 0.08 | 0.15 |
150 | 0.06 | 0.115 |
165 | 0.05 | 0.095 |
180 | 0.045 | 0.085 |
200 | 0.04 | 0.1 |
230 | 0.036 | 0.085 |
250 | 0.036 | 0.088 |
270 | 0.035 | 0.083 |
300 | 0.03 | 0.07 |
325 | 0.028 | 0.065 |
350 | 0.03 | 0.06 |
400 | 0.023 | 0.040 |
450 | 0.023 | 0.042 |
