Category: | Metal felt filter elements |
Material: | Stainless steel 316L |
Properties: | metal felt filter elements |
Application: | Filtration |

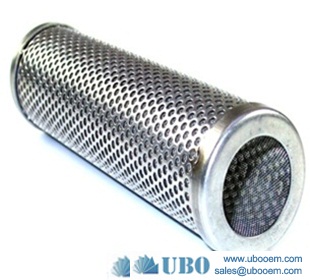

Cleanable Stainless Steel Filter Element
Description:
1.It is used imported sintered stainless steel fiber felt, has high-pressure,high temperature and chemical corrosion resistance.
2.Good air permeability, high dirt holding capacity, long life sevice time, clean repeatable
3.large flow area
Application
High molecular polymer filtration
High temperature gas filtration
Hydraulic filtration
High-precision ink filtration
High precision membrane pre-filtration
Catalyst carrier and regeneration
Food&drink, pharmaceutical industries.
Technical Parameter
Working Pressure:≤31.7Mpa
Working Temperature:≤300°C
Media Viscosity :≤260Pa.s
pleated water filters can be wound, pleated, wrapped, spun bonded or resin based along with carbon de-ionisation and RO membrane elements for food, beverage, chemical and pharmaceutical process filter applications.
Wound
Low cost
1-100 micron
High dirt holding capacity
Available from 5”-60”
High flow rate
Incinerable
Spun Bonds
Pure polyprop
No additives
FDA approved
Incinerable
High flow
High dirt capacity
1-75 micron
Length up to 40”
Pleated Elements
Cellulose polyester
Low cost
High dirt capacity
High surface area
5 – 50 micron
Up to 40”
Membrane Elements
Pleated
Mirrored acemetric
High performance
Particulate or micro biological performance
0.1 micron – 1 micron
Stainless Steel Elements
Cleanable
5 – 1000 micron
Housings
Polyprop with or without brass inserts, available with 1¼” – 2 ½ “inlet/outlet
Stainless steel
Glass fibre reinforced nylon
Pressure rating 8.5 – 13 bar
Knife edge seals, 222 or code 3 ‘o’ ring
Larger vessels available with 2 ½ “diameter and 4 ¼ “diameter filter cartridges
Material |
Medium |
PP fibre membrane |
Support layer |
PP |
|
Filter Core/cage |
PP |
|
O ring/Gasket |
NBR/Silicone/EPDM/Viton |
|
Specifications |
Length (inch) |
5,10,20,30,40,50 |
Micron rating |
0.1,0.2,0.45,0.65,1,3,5,10,20,30,60 |
|
Outer Diameter (OD) |
69mm |
|
End cap |
DOE(decided by client) |
|
Configuration |
Airtight method |
thermal bonding technique |
Effective filtratio area |
0.4-0.7 M2 /10" |
|
Max. working temperature |
80°C, 0.28MPa (2.8bar,40.61psi) |
|
Max. positive pressure |
25°C, 0.42Mpa (4.2bar,60.91psi) |
|
Max. back pressure |
25°C, 0.28Mpa (2.8bar,40.61psi) |
|
Sterilizing temperature |
121°C 30min |
