In the ever-evolving world of water and wastewater treatment, efficiency and reliability are paramount.
The wedge wire collector/distributor system is the heart of many high-performing filtration systems.
These seemingly simple structures play a vital role in optimizing the performance of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and a multitude of other critical applications.
If you're looking to enhance the functionality and longevity of your filtration setup, understanding the benefits of wedge wire collector/distributor systems is the best place to start.
Imagine a filtration system as a well-orchestrated team. The filter media (sand, carbon, resin, etc.) acts as the workhorse, removing impurities. But how do you ensure even distribution of water through the media during operation and during backwash? That’s where the wedge wire collector/distributor system steps in as the team captain.
Efficiently Collect Filtered Water: The precisely engineered wedge wire screen allows treated water to flow smoothly towards the outlet, minimizing pressure drop and maximizing flow rate.
Distribute Backwash Water Evenly: During the backwashing process, the system reverses the flow, ensuring that the filter media is thoroughly cleaned and regenerated, preventing channeling and maintaining optimal filtration capacity.
A notable type of wedge wire systems is the header lateral systems, which are best for larger filters. In that case, a wedge wire lateral is an excellent collector.

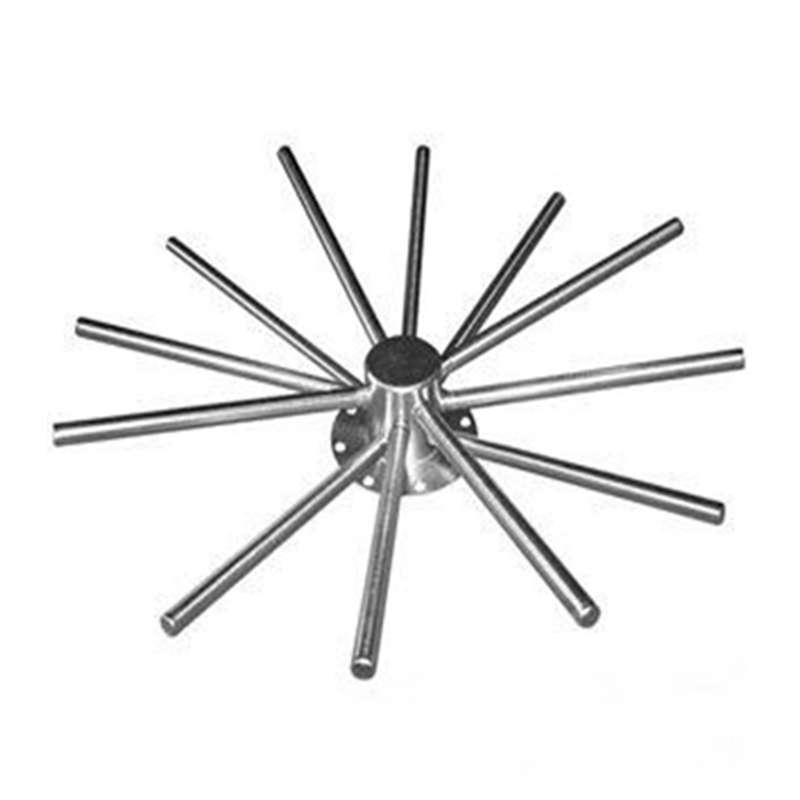

Hub Lateral Systems: These feature a central hub connected to multiple wedge wire screen laterals. These systems are particularly useful in smaller filtration vessels. Multiple tiers of laterals can be used for increased capacity.

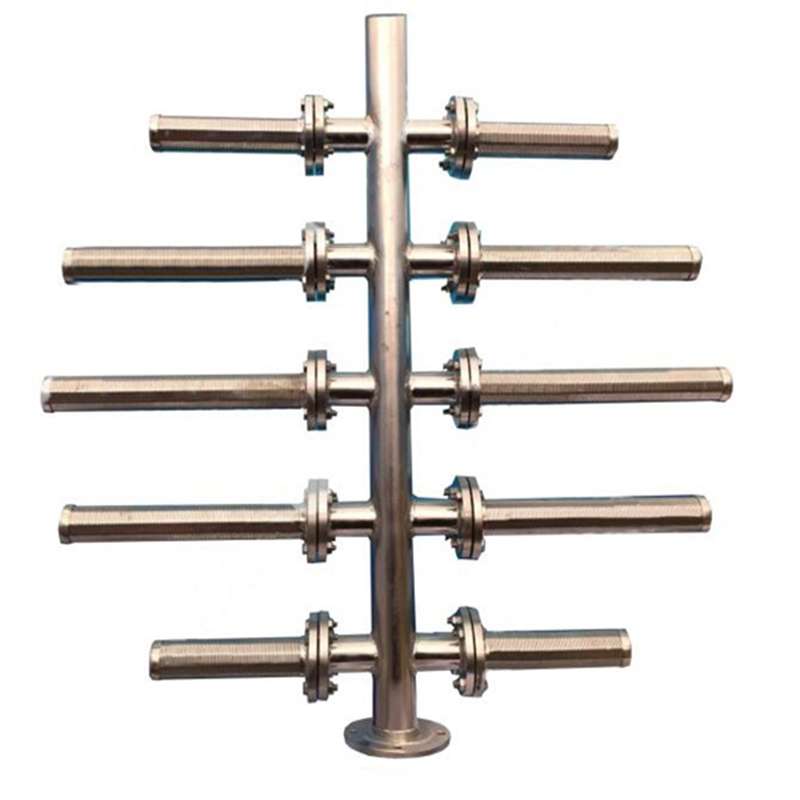

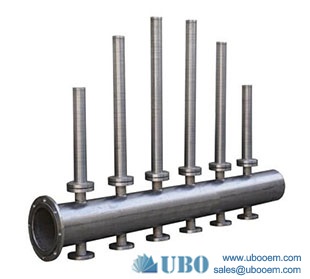

Header Lateral Systems: Ideal for larger diameter filters, header lateral systems utilize a header pipe connected to multiple lateral screens. These systems provide superior distribution and collection capabilities for higher flow rates.
Wedge wire screens offer several advantages over traditional perforated pipe distributors. Their unique construction contributes significantly to a system's success:

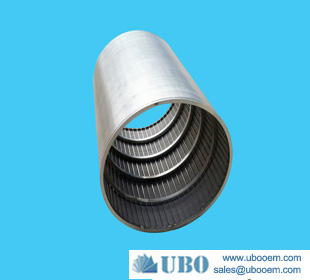

Superior Filtration Performance: The wedge-shaped profile of the wires minimizes clogging and maximizes open area, allowing for efficient water flow and effective solids separation.
Enhanced Backwashing: The smooth surface of the wedge wire facilitates thorough backwashing, preventing media build-up and ensuring optimal performance over time.
Robust Construction: Typically constructed from stainless steel (or specialized alloys like Hastelloy for corrosive environments), wedge wire screens are highly durable and resistant to corrosion, ensuring a long service life.
Customizable Design: Wedge wire screens can be tailored to specific application requirements, with varying slot sizes, wire profiles, and overall dimensions to optimize performance.
Header lateral assemblies are a typical screen type used in the underdrainage, also called header lateral assemblies.
Header lateral assemblies are assemblies of horizontal herringbone-style wedge wire screen laterals and vertically secured round hubs.
The screen lateral has an inherent even pattern, which is made of stainless steel, hastelloy alloy steel, and other alloy steels.
The screen lateral has various slot sizes, wire size, and diameters to suit common or customized applications.
Choosing the right collector/distributor system is an investment in the long-term efficiency and reliability of your filtration process. By leveraging the advantages of wedge wire technology, you can optimize water flow, minimize maintenance, and ensure the consistent production of high-quality treated water.
Ready to upgrade your filtration system?
Contact us today to discuss your specific needs and explore the best wedge wire collector/distributor solution for your application.
