Are you looking for reliable and efficient internal components for your radial flow reactor?
Center pipes, particularly those using Johnson-type Vee wire (wedge wire) construction, are critical elements for the optimal performance of recombination and isomerization reactors, as well as catalytic reforming processes.

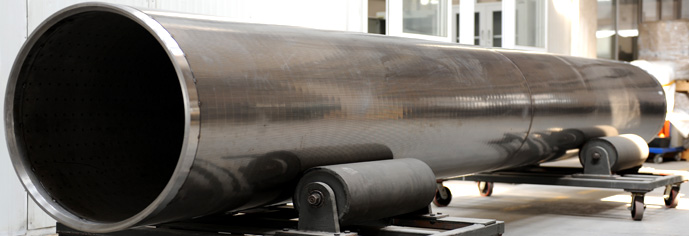

In a radial flow reactor, the center pipe (also often referred to as a central screen or center tube) is a key internal component located along the central axis of the reactor vessel. It's typically a cylindrical structure constructed with Vee (wedge) wire, creating a slotted screen. This screen interacts directly with the catalyst bed.
Flow Distribution: Raw materials (feedstock) enter the reactor, flow radially through the catalyst bed, and then are collected by the center pipe. This radial flow design offers a significant advantage over traditional downflow systems by:
Higher Flow Rates: Facilitates higher throughput of material.
Reduced Pressure Drop: Minimizes pressure loss across the catalyst bed, improving efficiency.
Pressure Drop Balance: The center pipe helps distribute the flow evenly, balancing the pressure drop across the catalyst and ceramic balls. This helps ensure consistent reaction conditions throughout the reactor.
Filtration and Catalyst Retention: The Vee wire screen acts as a filter, preventing catalyst fines and other particulate matter from flowing out of the reactor with the product stream. This maintains product purity and prevents damage to downstream equipment.
Outlet Connection: Typically, the bottom of the center pipe connects directly to the reactor's outlet.
The center pipe plays a critical role in the successful operation of the reactor. Damage to the center pipe can lead to:
Reactor Shutdown: If the center pipe fails, it can halt the entire process, leading to significant production losses.
Catalyst Loss: A damaged screen can allow catalyst to escape, reducing reactor efficiency and potentially contaminating the product.
Uneven Flow: Distorted or blocked center pipes lead to channeling and inefficient catalyst usage.
High Open Area: The wedge wire design maximizes the open area of the screen, minimizing hydraulic resistance and allowing for high flow rates.
Non-Clogging Design: The unique profile of the Vee wire prevents particles from becoming trapped in the slots, ensuring continuous and efficient operation.
Durable Construction: Vee wire screens are robust and resistant to corrosion and abrasion, ensuring long service life.
Precise Slot Control: Accurate slot sizing prevents catalyst leakage while maintaining optimal flow.
Customization: Center pipes can be manufactured to specific height and diameter requirements to fit any reactor design.
Dismountable Designs: Some designs allow for easier installation and removal through reactor hatches.
Tight Tolerances: Strict control over verticality and straightness ensures even catalyst distribution and prevents uneven pressure drop. This ensures optimal catalytic reaction performance.
In catalytic reforming, especially continuous reforming technology, the center pipe is essential. The perpendicularity (verticality) of the center pipe is critical for even catalyst distribution. Uneven distribution leads to variations in pressure drop and flow rates across the catalyst bed, negatively impacting the reforming process.
We specialize in the design and manufacture of high-quality Vee wire center pipes for radial flow reactors.
Our services include:
Custom Design: We can design center pipes to meet your specific reactor dimensions and operating conditions.
Drawing Design Service: We offer comprehensive drawing and design services.
High-Quality Manufacturing: We use state-of-the-art manufacturing techniques and facilities to ensure the highest quality products.
Wide Range of Sizes: We can manufacture center pipes of any height and diameter based on your requirements.
Contact us today to discuss your radial flow reactor center pipe needs!
