Wedge Wire flat screen filter panels

Product Code: 3637
Category:Sieve Plate Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Author: Eva
Email:sales@ubooem.com

Description of Wedge Wire flat screen filter panels


Wedge Wire flat screen filter panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a flat screen filter panel on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each falt wedge wire screen can be manufactured at a tilt to better serve your needs.

It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.

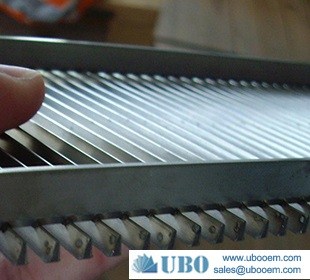

Wedge Wire wedge wire flat screen filter panel

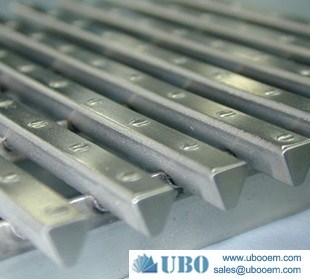

Wedge Wire wedge wire flat screen filter panel

Applications of Wedge Wire flat screen filter panel

Media Retention
Screening
Dewatering
Collection
Distribution
Separation
Product recovery

Characteristic of Wedge Wire flat screen filter panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Wedge Wire wedge wire flat screen filter panel

Structure of Wedge Wire wedge wire flat screen filter panel

Specification of the Wedge Wire flat screen filter panels




Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range Up to 6000mm
Width Range Up to 6000mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8x2.5
2x3
2x3
2x4
3x5
3x6
3x10
4x6
2x4
3x5
3x6
3x10
4x6
5x6
3x5
3x6
3x10
4x6
5x6
5x8
End Finishing With the frame, without any frame, according to request.
Note Customized According To Requirement
