| Category: | Basket Filters |
| Material: | Stainless steel 302,304,304L,316,316L |
| Properties: | basket filter |
| Application: | Filtration,transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant |

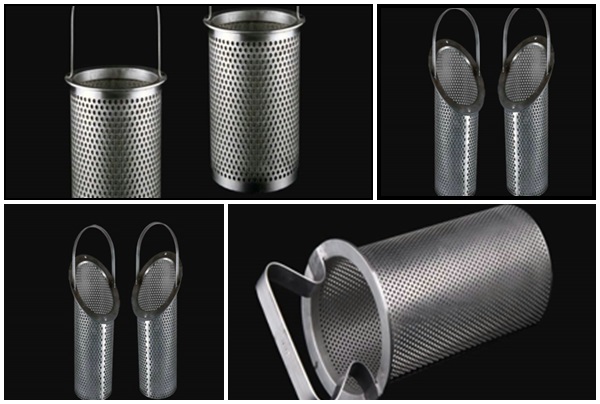

Heavy Machined Flange (with O-Ring) for seal between strainer basket and strainer housing.
14 ga. (0.078” thick) perforated sheet having ¼” dia. holes, 3/8” staggered centers, 40% Open Area is standard. The Perforated Strainer Basket can be supplied with any size hole and perforated pattern required.
Shown with Quick Release Handle.
They are widely used in protective covers of mechanical equipment,in the disposing of ambient noises,in the range of petroleum and chemical industry, in the manufacturing of boats ,in the range of phamacy ,grain,feed ,mine,kitcken utensils and so on.
stainless steel basket filters can be coated chrome or handle coated by chrome plate or e-polishing, it is bright and clean with and good structure, no deformation, easily cleaned, non-stick, not rusty, food grade and non-toxic tasteless; Varied models available, good structure, export standard, efficient delivery.
|
NOM. SIZE |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
|
|
OD |
150 |
3 7/8 |
4 5/8 |
5 1/8 |
6 5/8 |
7 1/2 |
8 1/2 |
10 3/4 |
|
300 |
3 7/8 |
4 5/8 |
5 1/8 |
6 5/8 |
7 1/2 |
8 1/2 |
10 3/4 |
|
|
600 |
4 1/8 |
4 7/8 |
5 5/8 |
6 7/8 |
9 1/4 |
10 1/4 |
12 3/8 |
|
|
ID |
1 3/4 |
2 1/4 |
2 3/4 |
3 1/2 |
4 5/8 |
5 1/2 |
7 1/8 |
|
|
H |
4 1/2 |
5 1/2 |
6 1/2 |
8 1/2 |
10 1/2 |
13 |
17 |
|
|
L |
3 1/2 |
4 |
4 1/2 |
6 |
7 1/2 |
9 |
12 |
|
|
NOSE |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
|
|
NOM. SIZE |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
|
OD |
150 |
13 1/8 |
15 7/8 |
17 1/2 |
20 |
21 3/8 |
23 5/8 |
28 |
|
300 |
13 1/8 |
15 7/8 |
17 1/2 |
20 |
21 3/8 |
23 5/8 |
25 |
|
|
600 |
15 1/8 |
17 3/8 |
19 1/8 |
22 |
13 7/8 |
26 5/8 |
30 7/8 |
|
|
ID |
9 |
10 7/8 |
12 5/8 |
14 1/2 |
16 3/8 |
18 3/8 |
22 3/8 |
|
|
H |
21 |
25 |
26 |
29 1/2 |
33 |
37 |
44 |
|
|
L |
14 |
16 1/2 |
17 |
19 |
21 |
24 |
28 |
|
|
NOSE |
3 |
3 |
4 |
4 |
6 |
6 |
10 |
|
Payment Term: L/C, T/T
Packing: In paper box, outer export standard carton. But it is available to be packed as your special requests.
Delivery Time: Within 35 days after your confirmation
Minimum Quantity: 1000pcs/ size
OEM and ODM are all welcome ! We can design and produce according to customer's special requirements. Our R&D department’s technologists will show you the most suitable project to you!
Experienced QC staffs check the quality by multiple testes on every production line.
Our products have passed the strictly test of SGS.
- 17 sets of Hot-forging machines for dies hot-pressing
- CNC for machining & milling .tapping & drilling
- Heat treatment and drying machinery for grinding & polishing
- High-precision equipments for making molds to OEM
Excellent quality and competitive price, we must can be your excellent stable backing!
Ubo Filter Co.,Ltd could supply stainless steel filter elements,filter element, filter disc, sintered filter,filter strainer,polymeric filter,basket filter, wire mesh filter ,pleated filter
