Category: | Disc Filters |
Material: | Stainless steel 316 |
Properties: | leaf filters |
Application: | Filtration |

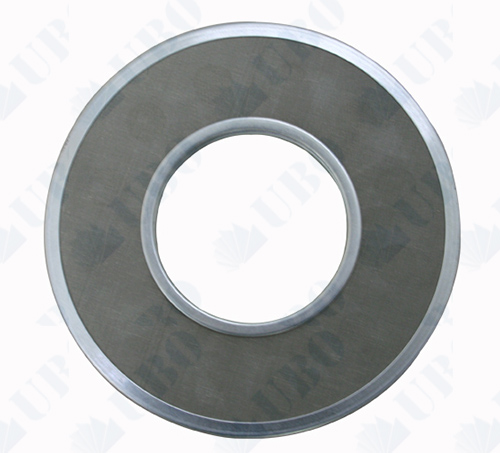

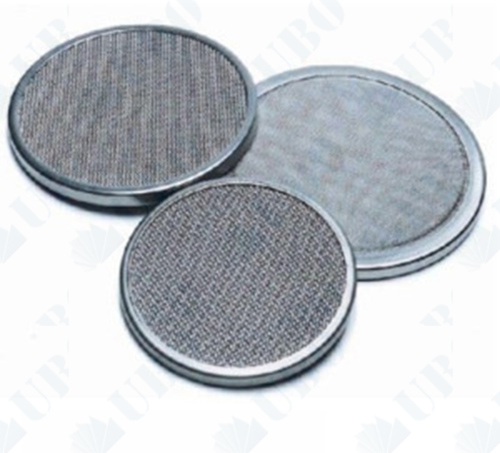

Pressure Leaf Filter is a kind of the most widely used standards for the structure of sintered network. This sintered network is the five-story stainless steel wire mesh stacked together in sequence, after a new type of vacuum sintered filter material.
1. protective layer
2. filter control layer
3. dispersion layer
4. supporting skeleton layer
5. skeleton layer of five parts.
Pressure Leaf Filter Features:
1. high mechanical strength and compressive strength. Machining, welding and assembly properties of a good, easy to use.
2. Filter layer on the second floor so that it has been well protected and diversion, filtering precision can reach uniform filter performance, ensure that it has high stability.
3. Selection of 316L material, good corrosion resistance, heat resistance, and can be used to -200 °C ~ 480 °C temperature and acid-base environment, filtering.
Pressure Leaf Filter Application:
Aerospace, aviation, petroleum, chemical, metallurgy, machining, pharmaceutical, food, sythetic fiber, film, enviromental protection industries in respect of filtration and purification, gas-solid, liquid-solid, and gas-liquid seperation, cooling, gas distribution, liquidization bed, gas sampling collection, shock reducing, sound attenuation, inflaming retarding
Distribution and cooling material in high temperature condition;
material used for gas distribution and fluidization bed;
material requiring high precision,stable performance in high temperature;
high pressure backwashed oil filter.
Model |
DN(mm) |
Filter precision(um) |
Nominal pressure(MPa) |
Filter disc size(mm) |
Filter disc number |
|
Inner |
Outer |
|||||
SPL-15 |
15 |
80
100
180 |
0.8 |
20 |
40 |
2-30 |
SPL-25 |
25 |
30 |
65 |
2-20 |
||
SPL-32 |
32 |
30 |
65 |
2-30 |
||
SPL-40 |
40 |
40 |
95 |
2-34 |
||
SPL-50 |
50 |
60 |
125 |
2-22 |
||
SPL-65 |
65 |
60 |
125 |
2-34 |
||
SPL-80 |
80 |
70 |
155 |
2-40 |
||
SPL-100 |
100 |
70 |
155 |
4-40 |
||
SPL-125 |
125 |
90 |
175 |
4-40 |
||
SPL-150 |
150 |
90 |
175 |
6-40 |
||
SPL-200 |
200 |
90 |
175 |
8-40 |
